Intake manifold component description - GF09.20-P-6010V

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.920 in MODEL 203

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203, 209

ENGINE 272.941 in MODEL 203

ENGINE 272.942 in MODEL 171

ENGINE 272.943 in MODEL 211

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251

ENGINE 272.946 in MODEL 221

ENGINE 272.960 in MODEL 203, 209

ENGINE 272.963 in MODEL 171

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221

ENGINE 272.966 in MODEL 230

ENGINE 272.967 in MODEL 164, 251

ENGINE 272.970 in MODEL 203

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221

ENGINE 273.922 in MODEL 221

ENGINE 273.923 in MODEL 164

ENGINE 273.924 in MODEL 221

ENGINE 273.943 in MODEL 164

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251

ENGINE 273.965 in MODEL 230

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221

Shown on ENGINE 272

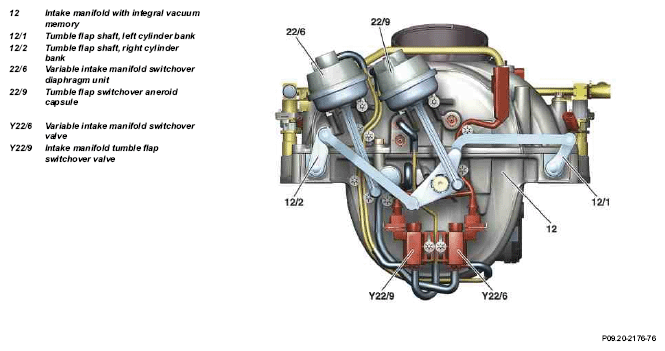

Fig 1: Identifying Intake Manifold Components - Shown On Engine 272

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The intake manifold is located between the cylinder banks.

Task

Optimizes engine torque curve by means of two different intake manifold lengths

Improves flow via swing-out tumble flaps in the intake port.

Design

The intake manifold is assembled out of several magnesium pressure castings. During assembly, the individual intake manifolds for each cylinder and the air manifold collecting sections are in the center. The intake manifold cannot be disassembled. A total of four shafts are stored in the intake manifold.

The vacuum pressure for the aneroid capsules is supplied by a vacuum reservoir in the intake manifold when the switchover valves are actuated. The reservoir volume is designed for several operations without renewed evacuation.

Shown on ENGINE 272

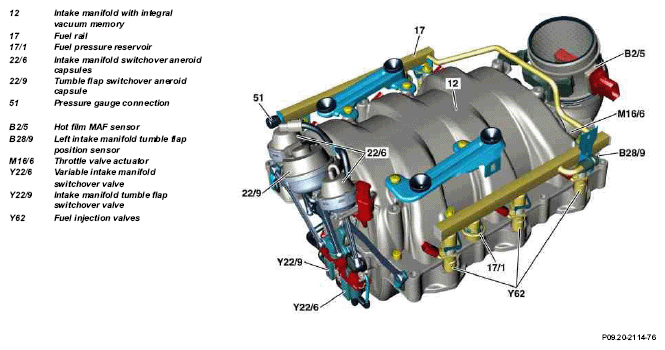

Fig 2: Identifying Intake Manifold Design - Shown On Engine 272

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on ENGINE 273

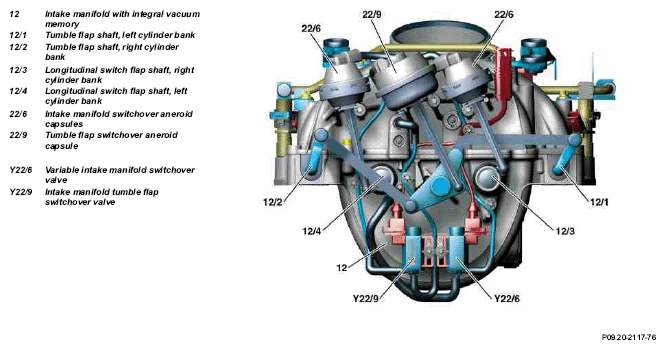

Fig 3: Identifying Intake Manifold Design - Shown On Engine 273

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Intake manifold switchover, function

The individual intake manifolds each approx. 800 mm long, are arranged in a spiral shape around the air collecting volume. Each single intake manifold has a further opening to the air collecting volume somewhere in the middle. These can be opened or closed by rotating longitudinal switch flap shafts. The switch flaps of a cylinder bank are interconnected by a shaft and each of the flap is actuated by an aneroid capsule in case of engine 272 BOTH aneroid capsules for the intake manifold switchover are connected to the variable intake manifold switchover valve via hose pipes. Engine 273 has only one aneroid capsule. The flap shafts are connected in the intake manifold. The switch flaps open by spring force without actuation and enable the short suction way.

Cut at intake manifold at cylinder level, short intake route

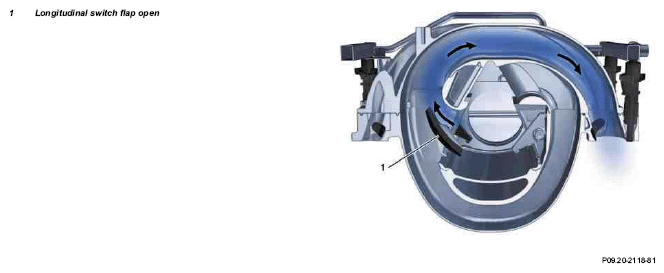

Fig 4: Identifying Longitudinal Switch Flap Open

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

At higher speeds (from approx. 3500/min) the intake manifold switchover aneroid capsules are ventilated and the switch flaps opened by the spring force. The intake air takes the short intake route.

Cut at intake manifold at cylinder level, long intake route

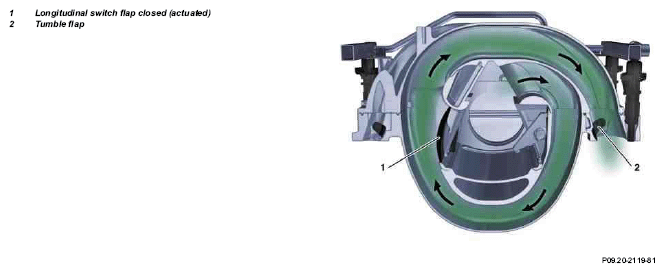

Fig 5: Identifying Longitudinal Switch Flap Closed And Tumble Flap

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

At lower speed (up to approx. 3500/min) the intake manifold aneroid capsules are pressurized with vacuum pressure and the longitudinal switch flaps closed. The intake air takes the long intake route. The result is improved cylinder charge and thus an increase in torque.

Tumble flap switchover function

At partial load, tumble flaps can be fully swung out in each cylinder intake port in the intake manifold. This closes the intake manifold by around 50 %.

The flow speed of the intake air is increased and allows for improved distribution of the fuel/air mixture in the combustion chamber. The tumble flaps are actuated via an aneroid capsule and linkage.
