Component description for the vent line heater element - GF09.00-P-4010P
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164.1 /8, 203.0 /2, 209.3 /4, 211.0 /2 /6, 219.3, 221.0 /1, 251.0 /1
ENGINE 642 in MODEL 461.3, 463.3
Shown except code (494) USA version and except model 461.3

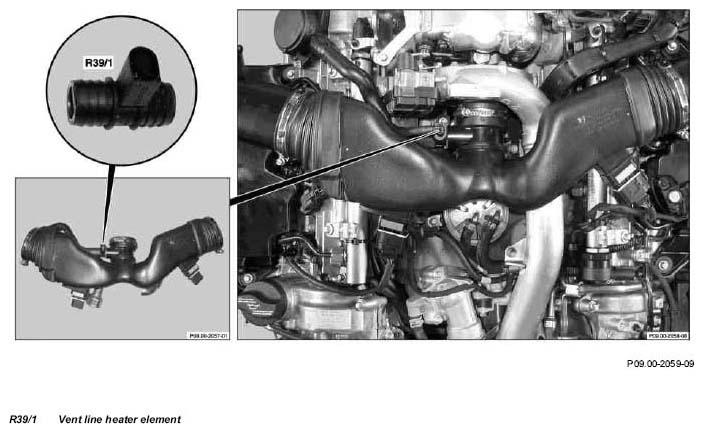

Location
The vent line heater element is located in the crankcase ventilation hose on the intake line to turbocharger.
Task
The vent line heater element prevents freezing of the crankcase ventilation system.
Design
The vent line heater element consists of a plastic housing in which a heating resistor is integrated.
Function
The vent line heating element is switched on and off by the CDI control unit (N3/9) depending on the outside temperature.
