Component description for the variable intake manifold switchover valve - GF09.20-P-6001AMG

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156.980 in MODEL 164, 251

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221

Location

The switchover valve is mounted at the front of variable intake manifold.

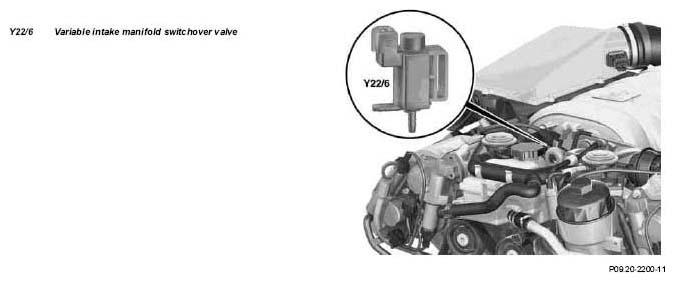

Fig 1: Identifying Variable Intake Manifold Switchover Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The switchover valve applies vacuum to variable intake manifold vacuum unit to intake manifold switchover (long intake routes) or ventilates it again (short intake routes).

Function

Design

The switchover valve is an electromagnetic switchover valve which is cast in a plastic housing.

The coil resistance about 30 Ω at 20°C.

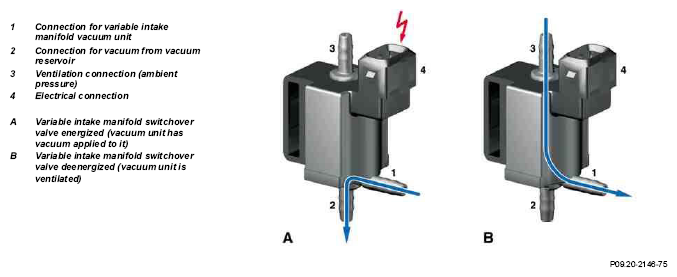

Fig 2: Identifying Variable Intake Manifold Vacuum Capsule Connection And Wiring Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The switchover valve is actuated by the ME-SFI control unit (N3/10) from the ground side via its own output stage. The voltage supply takes place from "circuit 87 M2e".

In an activate condition a valve plate is pulled by solenoids and a rubber seal closes the connection (3). The connection between the connection (2) and connection (1) is released in this way and the vacuum from the vacuum reservoir is built up to the vacuum unit.

In the deenergized state the link again exists between connection 2 and 3 through which

Connection 1 is supplied with air again.
