Component description for the charge air cooler - GF09.41-P-5000GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164.1 /8, 251.0 /1
ENGINE 642 in MODEL 463

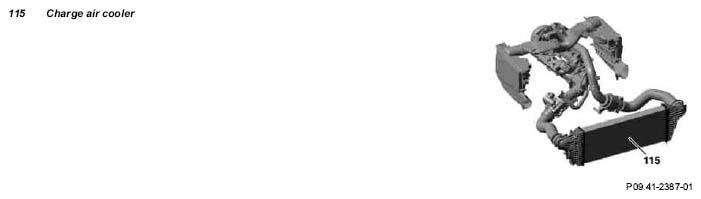

Location
The charge air cooler is located at the front under the radiator.
Task
The charge air cooler cools the incoming intake air. This improves the fill level in the cylinder.
Design
The charge air cooler consists of 2 side-mounted air intake cases with connections and the radiator block which contains the corrugated rib-pipe-system.
Function
During the charging process the charge air is led through the charge air cooler. The air stream present in driving mode which flows through the corrugated rib-pipe-system cools off the charge air.
