Remove/ install activated charcoal canister - AR47.30-P-8212GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164 with ENGINES 113, 156, 272, 273

Shown on model 164.1

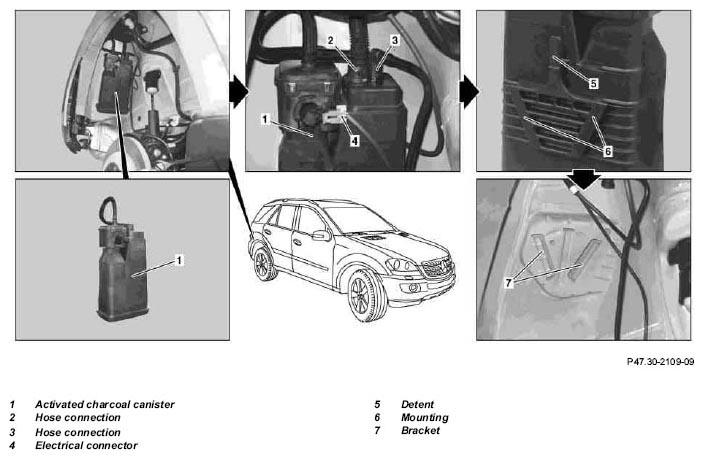

Fig 1: Identifying Activated Charcoal Canister Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
1	Switch off ignition
2	Remove cap on fuel tank	In order to reduce pressure in the fuel tank.
3	Remove right rear complete wheel		AP40.10-P-4050Z
4	Remove fender liner in right rear fender		AR88.10-P-1400GZ
5	Release and disconnect hose (2, 3) on activated charcoal canister (1)	Installation: Check condition and seating of the sealing ring; replace if necessary.
6	Release and disconnect electrical connection (4)	If installed.
7	Pull activated charcoal canister (1) upwards out of bracket (7)	To do this, push notch (5) in direction of activated charcoal canister (1). Installation: Check for correct seating of mount (6) in bracket (7).
8	Install in the reverse order
