Remove/install fender liner in rear fender - AR88.10-P-1400GZ

MODEL 164

Shown on model 164.1

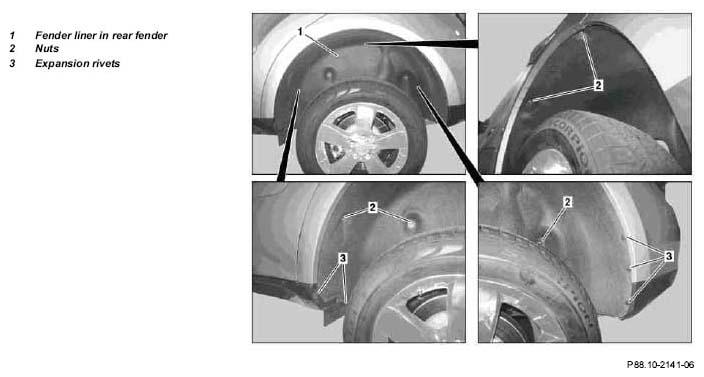

Fig 1: Identifying Fender Liner In Rear Fender Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1		Lift/jack up vehicle	AR00.60-P-1000GZ
2	Unscrew nuts (2).	On model 164.1 unscrew three nuts (2). On model 164.8 unscrew two nuts (2).
3	Remove expansion rivets (3)	On model 164.1 remove three expansion rivets (3) at rear. On model 164.8 remove six expansion rivets (3) at rear.
4	Loosen fender liner in rear fender (1) from rear fender with mounting wedge.	Installation:  Ensure that fender liner is seated correctly in rear fender.
		Mounting wedge	Figure
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
