Empty fuel tank on systems with faulty fuel pumps - AR47.10-P-4000GZH (with Gas-tight fuel tank)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 164 with CODE (917) Gas-tight fuel tank
| Drain | |||
|---|---|---|---|
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| 1 | Connect ground line of vacuum unit to vehicle ground | ||
| Drain right chamber (2R) of fuel tank (A) | |||
| 2 | Open fuel filler flap and filler cap | ||

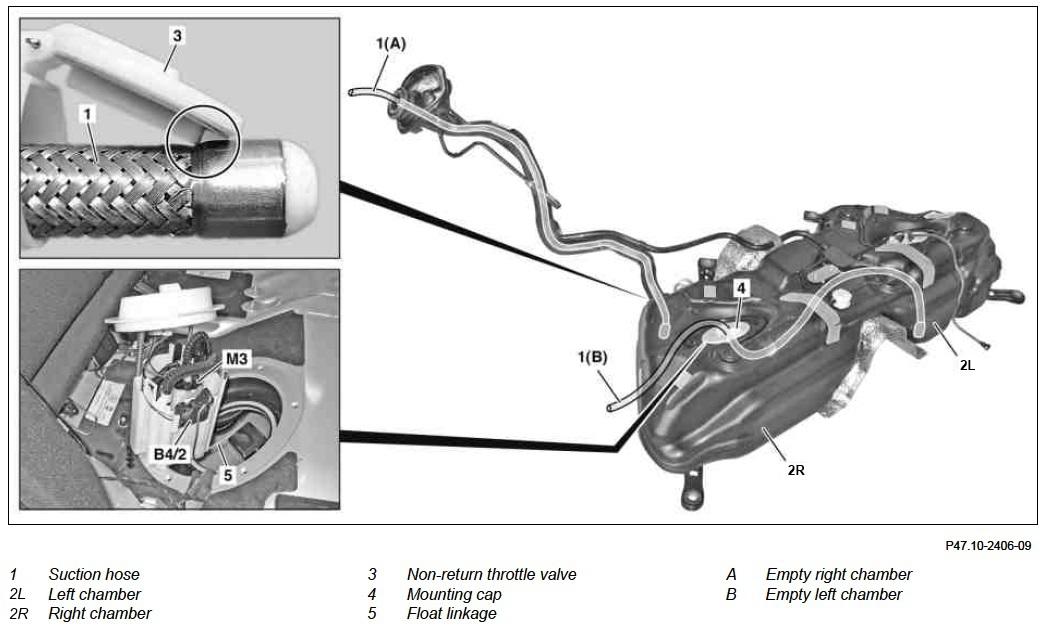

| 3 | Push end of the extraction hose (1) through filler neck and push filler pipe into right chamber (2R) of the fuel tank | Only use the following extraction hose (1) otherwise there is threat of damage to the non-return throttle valve (3) and extraction hose (1): Company Plank GmbH www.plankgmbh.de Extraction hose model 1700094 Only this extraction hose (1) can be taken out of the filler pipe again due to its special form! Rubber or plastic hoses can get stuck on the non-return throttle valve (3)! If the prescribed extraction hose (1) was not used unintentionally: Do not use any great force when pulling out the extraction hose (1). Open non-return throttle valve (3) by hand and have the extraction hose (1) pulled out of the filler pipe by an assistant by: ↓ Removing locating cover (4) |
AR47.20-P-5710GZH |
| 4 | Pump off fuel using a tank emptying device | Use safety container to catch the fuel; observe filling capacity of the safety container. |
|
| Drain left chamber (2L) of fuel tank (B) | |||
| 5 | Remove locating cover (4) | AR47.20-P-5710GZH | |
| 6 | Pull extraction hose (1) out of filler neck and push over right chamber (2R) into the left chamber (2L) of the fuel tank | ||
| 7 | Pump off fuel from left chamber (2L) of the fuel tank using a tank emptying device | ||
| Check and fill | |||
| 8 | Pull out extraction hose (1) from right chamber (2R) of fuel tank | ||
| 9 | Mount locating cover (4) | AR47.20-P-5710GZH | |
| 10 | Inspect fuel system for leaks | AP47.00-P-4750TZV | |
| 11 | Push extraction hose (1) into filler neck | ||
| 12 | Pump fuel into fuel tank | ||
| 13 | Pull extraction hose (1) out of filler neck; close fuel filler flap and tank cap | ||
| 14 | Disconnect ground line of tank emptying device from vehicle ground |
