Empty fuel tank if fuel pump is faulty - AR47.10-P-4000GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164

Shown on model 164.1

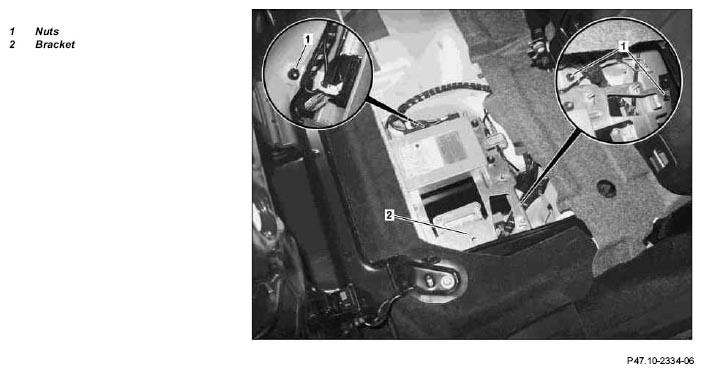

Fig 1: Identifying Fuel Tank Components - Shown On Model 164.1
G05258474Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1 with USA version, code 494

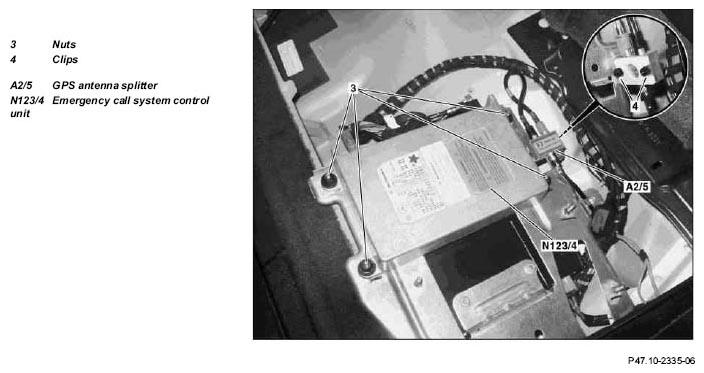

Fig 2: Identifying Fuel Tank Components - Shown On Model 164.1 With USA Version, Code 494
G05258475Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.1 with USA version, code 494

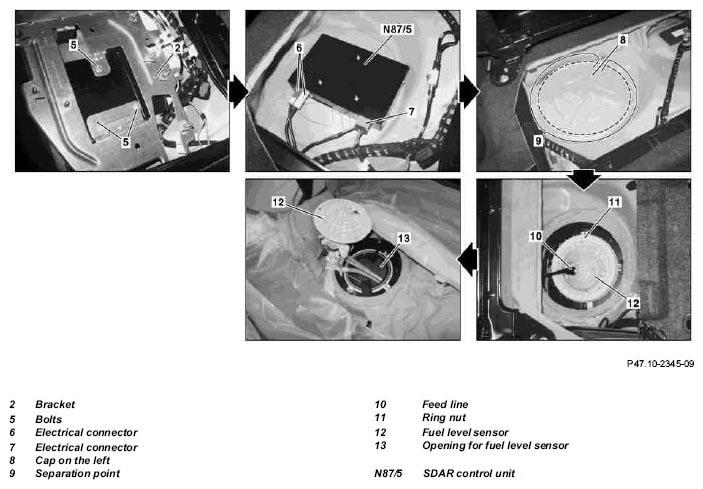

Fig 3: Identifying Fuel Tank Components - Shown On Model 164.1 With USA Version, Code 494
G05258476Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel as well as risk of injury  to eyes and skin caused by contact with fuel. No fire, sparks, open flames or smoking.
Pour fuels only into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.		 AS47.00-Z-0001-01A
1 Open fuel filler flap and filler cap
2 Connect ground line of tank emptying device to vehicle ground
  Draining
3 Pump fuel out of right-hand chamber of fuel tank into the safety container SPECIAL TOOL Extraction hose Fig 4
REMOVINGINSTALLING Remove/install
4 Fold forward rear seat cushion
5 Lift up sound-deadening mat and place to one side
6 Remove car interface (cell phone) IMPORTANT Only for vehicles with telephone "mobile", UHI (UPCI) system, code 388. AR82.70-P-8920GZ
7 Unscrew nuts (1) and remove bracket (2)
8.1 Unscrew nuts (3), swing emergency call system control unit (N123/4) out of the working area and secure IMPORTANT Only on vehicles with TELE AID emergency call system, code 359.
9 Pull GPS antenna splitter (A2/5) upwards from bracket (2), swing out of the working area and secure IMPORTANT Only on vehicles with TELE AID emergency call system, code 359.
    IMPORTANT Do not damage clip (4).
10 Remove screws/bolts (5) IMPORTANT Only on vehicles with TELE AID emergency call system, code 359.
11 Remove bracket (2)
12 Disconnect electrical connector (6, 7) IMPORTANT Only on vehicles with USA version, code 494.
13 Remove SDAR control unit (N87/5) IMPORTANT Only on vehicles with USA version, code 494.
14.1 Disconnect cap on the left (8) at marked connecting point (9) and remove For vehicles with left cap (8)
IMPORTANT The left cap (8) is glued in with body sealer. Heat with hot air gun to make it easier to remove.
IMPORTANTInstallation:  Replace cap on the left (8) and insert with new sealing mass.
14.2 Detach filler neck on fuel tank For vehicles without left cap (8)
Use safety container for collecting the fuel.
IMPORTANTInstallation:  Check filler neck for damage; replace if necessary.
15 Disconnect feed line (10) IMPORTANT Cover separation point with rag, in order to prevent ingress of fuel into the interior.
16 Remove fuel tank For vehicles without left cap (8) AR47.10-P-4100GZ
17 Use claw wrench to remove on ring nut (11) IMPORTANTInstallation:  The parts kit with ring nut (11), sealing ring and threaded ring must be replaced.
    TORQUE SPECIFICATION Ring nut to fuel tank *BA47.10-P-1004-01J
    SPECIAL TOOL Claw-type wrench Fig 5
18 Swing fuel level sensor (12) out of the working area and secure
  Draining
19 Pump fuel out of left-hand chamber of fuel tank into the safety container SPECIAL TOOL Extraction hose Fig 4
20 Install in the reverse order
  Filling
21 Pump fuel out of safety container through filler opening into the fuel tank FLUID SPECIFICATION Fuel tank capacity *BF47.10-P-1001-01F
    SPECIAL TOOL Extraction hose Fig 4
22 Screw on filler cap and close fuel filler flap
23 Disconnect ground line of tank emptying device from vehicle ground
FUEL TANK

Number Designation Model 164.1/8
BA47.10-P-1004-01J Ring nut to fuel tank Nm 110
FUEL TANK CAPACITY

Number Designation Model 164.1/8
BF47.10-P-1001-01F Fuel tank capacity Total filling capacity Liters 100
Reserve capacity Liters 13
Fig 4: Identifying Suction Hose (168 589 00 90 00)
G05258478Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Claw-type wrench (164 589 01 07 00)
G05258477Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
