Remove/install right engine support - AR22.10-P-4340GZ (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.964 in MODEL 164.175
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2.1 | Disconnect ground line from battery | AR54.10-P-0003GZ | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 3 | Raise vehicle with lifting platform | AR00.60-P-1000GZ | |
| 4 | Dismantle engine mount at right engine support (1). | AR22.10-P-1100GZ | |
| *BA22.10-P-1001-03G | |||
| *BA22.10-P-1002-03G | |||
| Figure | |||
| Figure | |||
| Figure | |||

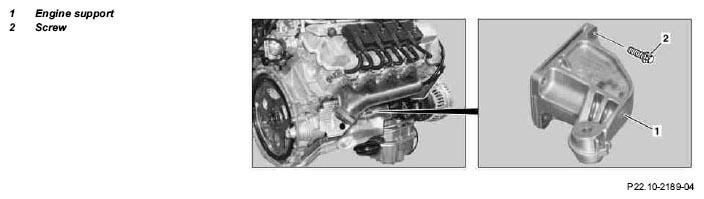

| 5 | Remove bolt (2) and take off engine support (1) | ||
| *BA22.10-P-1003-01S | |||
| 6 | Take out engine support (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system |
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS
| Number | Designation | Engine 113.964 in model 164 | ||
|---|---|---|---|---|
| BA22.10-P-1003-01S | Bolt, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1001-03G | Bolt, front engine mount to front axle carrier | Nm | 53 |
| BA22.10-P-1002-03G | Bolt, front engine mount to engine support | Nm | 53 |
