Remove/install rear engine mount - AR22.10-P-1160GZ (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.9 in MODEL 164.1
MODIFICATION NOTES
| 18.4.06 | Notes on screw connections with self-tapping screws, added | Replaces notes on self-locking nuts and bolts |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||

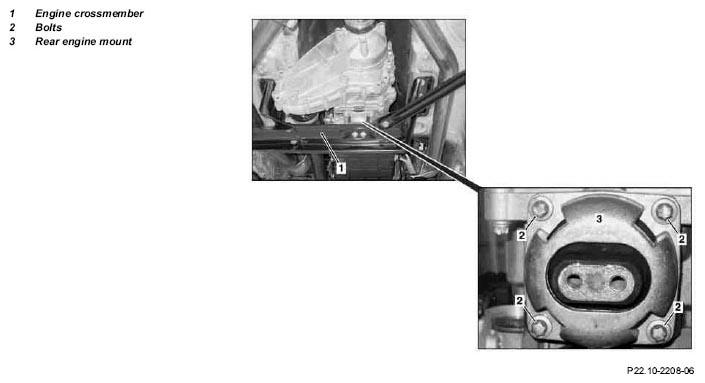

| 1 | Remove engine crossmember (1) | AR22.10-P-1170GZA | |
| 2 | Unscrew bolts (2) at the rear engine mount (3) | *BA22.10-P-1003-03G | |
| 3 | Remove rear engine mount (3) | ||
| 4 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1003-03G | Bolt, rear engine mount to transmission | Nm | 20 |
