Remove/install rear engine cross member - AR22.10-P-1170GZA (ML500)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113.9 in MODEL 164.1
MODIFICATION NOTES
| 7.11.06 | Bolt, rear engine crossmember to body | *BA22.10-P-1005-03G |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||

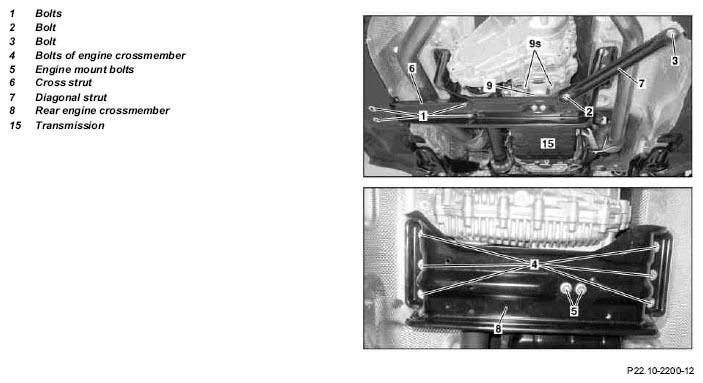

| 1 | Undo bolts (1) and remove cross strut (6). | *BA22.10-P-1006-03G | |
| *BA22.10-P-1008-03G | |||
| 2 | Remove bolt (2) | *BA22.10-P-1007-03G | |
| 3 | Loosen bolt (3) and swivel diagonal strut (7) to the side | *BA22.10-P-1009-03G | |
| 4 | Support transmission (15) with transmission jack and plate | ||
| 5 | Unscrew engine mount bolts (5) | *BA22.10-P-1004-03G | |
| 6 | Undo bolts for engine crossmember (4) and remove rear engine crossmember (8) | *BA22.10-P-1005-03G | |
| 7 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1004-03G | Bolt, rear engine mount to rear engine crossmember | Nm | 58 |
| BA22.10-P-1005-03G | Bolt, rear engine crossmember to body | Nm | 55 |
| BA22.10-P-1006-03G | Bolt for cross strut on engine crossmember | Nm | 45 |
| BA22.10-P-1007-03G | Bolt for diagonal strut on engine crossmember | Nm | 45 |
| BA22.10-P-1008-03G | Bolt, cross strut to body | Nm | 45 |
| BA22.10-P-1009-03G | Bolt, diagonal strut to body | Nm | 45 |
