Remove/install electric fan - AR20.40-P-5000GZA (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 164

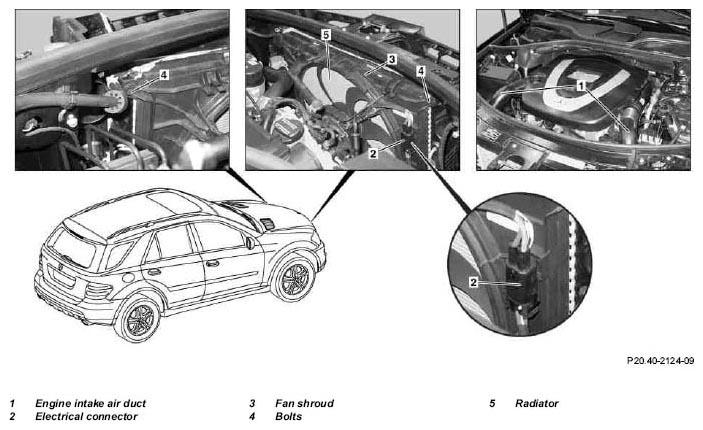

Shown on engine 272
MODIFICATION NOTES
| 17.10.05 | Disconnect ground line from battery - removed |
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove left and right engine intake air duct (1) | ||
| 2 | Remove upper radiator crossmember | Engine 273 | AR62.30-P-2300GZ |
| 3 | Unplug electrical connection (2) on fan shroud (3) | ||
| 4 | Unscrew bolts (4) at fan shroud (3) | ||
| 5 | Remove fan shroud (3) from lower mounts (5) on radiator | ||
| 6 | Install in the reverse order | ||
| 7 | Connect STAR DIAGNOSIS and read fault memory | AD00.00-P-2000-04A |
