Emission control - function - GF14.00-P-3000BK

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.967 in MODEL 219

ENGINE 113.964 in MODEL 164.1

ENGINE 113.971 in MODEL 251

Shown on model 219

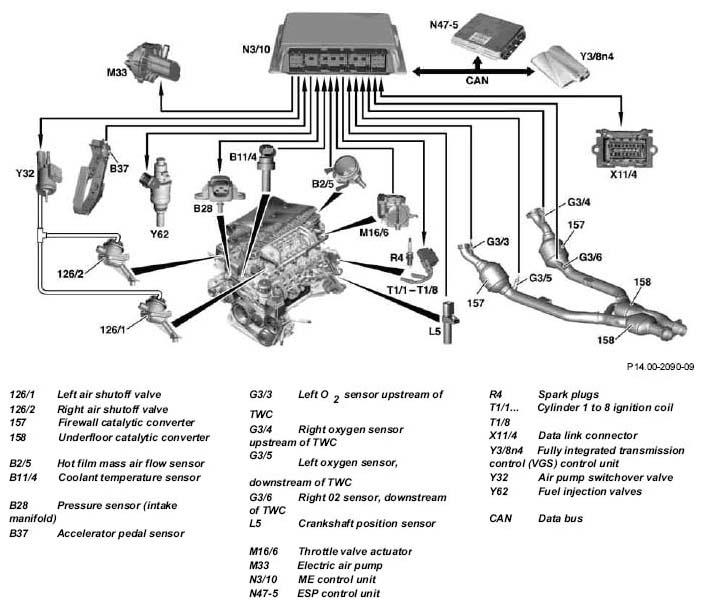

Fig 1: Emission Control Function Diagram (Shown On Model 219)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The emission control system is divided into the following subsystems which are controlled and coordinated by the ME control unit:

Closed-loop mixture control
Two-sensor control
O₂ sensor heater
Exhaust gas recirculation
TWC heating.

The task of the emission control system is to reduce the exhaust emissions of:

nitrogen oxides (NO_X )
hydrocarbon (HC)
carbon monoxide (CO).

	ME-SFI two-sensor control - function		GF07.61-P-3020BK
	O₂ sensor heater - function		GF07.61-P-3025BK
	Self-adjustment of mixture formation - function		GF07.61-P-3030BK
	ME-SFI TWC heating-up - function		GF07.61-P-3032BK
	ME-SFI lambda control - function		GF07.61-P-4022BK
	ME-SFI transmission shift delay - function		GF07.61-P-4023BK
	Air injection - function		GF14.30-P-3012BK
	Exhaust gas recirculation - unction		GF14.20-P-3000BK
	Catalytic converter efficiency monitoring - function		GF49.10-P-3033BK
