Check engine valve timing - AR05.10-P-6858AMG (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

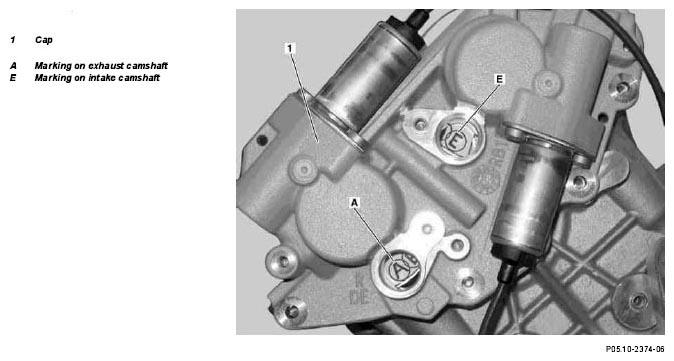

Shown on right cylinder head

Fig 1: Identifying Cap And Marking On Intake And Exhaust Camshaft

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Turn key in ignition switch to position "0".	Vehicles with code 889 Keyless-Go: Switch off engine, remove Keyless-Go cards out of vehicle and store outside of the transmitter range.
2	Open engine hood and raise to vertical position	Model 216, 221
		Model 164	AR88.40-P-1000GZ
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
		Model 219	AR88.40-P-1000TX
		Model 251	AR88.40-P-1000RT
3	Remove partition wall between wheelhouses	Model 251	AR62.30-P-2400RT
4	Remove air filter housing	Model 164, 251	AR09.10-P-1150GZS
		Model 209, 211, 219	AR09.10-P-1150TMG
		Model 216, 221	AR09.10-P-1150SMG
5	Remove spark plugs	Only if it is not possible to crank engine due to high compression.
		Model 164, 251	AR15.12-P-1010GZS
		Model 209, 211, 219	AR15.12-P-1010TMG
		Model 216, 221	AR15.12-P-1010SMG
6	Remove poly-V belt	Model 209 with code P98 Black Series	AR13.22-P-1202TMG
7	Remove guide pulley over crankshaft belt pulley	Model 209 with code P98 Black Series
			*BA13.25-P-1005-01U
8	Rotate engine at crankshaft center bolt in direction of rotation of engine to a 450° crankshaft angle after top dead center (TDC or marking 1-6) on cylinder 1
9	Remove Hall sensor on front caps (1)
10	Check position of marking on intake camshaft (E) and marking on exhaust camshaft (A)	The markings must be centered in openings of Hall sensor. The timing must be adjusted if there are deviations: ↓ Remove, install camshafts
		Up to engine number 001177	AR05.20-P-7201ANG
		from engine number 001178	AR05.20-P-7201AMG
11	Install in the reverse order

BELT TENSIONING DEVICE

Number	Designation		Engine 156
BA13.25-P-1005-01U	Guide pulley (between poly-V belt tensioning device and coolant pump)	Nm	20
