Remove/install flywheel / drive plate - AR03.30-P-8001GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175 with TRANSMISSION 722.901

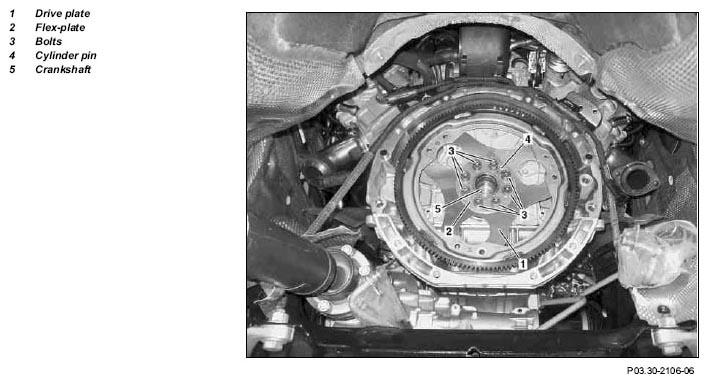

Fig 1: Identifying Flywheel And Drive Plate Components (Model 164.175)
G05257349Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove automatic transmission   AR27.10-P-0500GZ
2 Install retaining lock for crankshaft (5) and starter ring gear   AR03.30-P-5000GZ
3 Remove bolts (3) from drive plate (1) NOTESInstallation:  Replace bolts, because if they are used again, the connection may loosen and the bolts may shear off.
    TORQUE SPECIFICATION *BA03.30-P-1002-01D
4 Remove flex plate (2) NOTESInstallation:  The flex plate must be installed back into the same position as the bulging caused by the bolts may generate an incorrect torque.
5 Remove drive plate (1) Installation:  The cylinder pin (4) determines the installation position.
6 Install in the reverse order
7 Carry out initialization IMPORTANT If a new drive plate is installed, perform initialization in the ME control unit with STAR Diagnosis in the menu point "Control unit adaptation".
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnostic system *WH58.30-Z-1048-13A
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 113.94/96/ 97/98
BA03.30-P-1002-01D Bolt connecting two-mass flywheel/drive plate to crankshaft Stage 1 Nm 45
Stage 2 ∠° 90
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnostic system, Compact Passenger Car 6511 1801 00
