Tightening diagram of crankshaft bearing caps - AR03.20-P-4351-02SX

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

CRANKSHAFT BEARING CAP

Number	Designation				Engine 273
BA03.20-P-1001-01D	Bolt for crankshaft bearing cap	M8	Stage 1	Nm	20
BA03.20-P-1001-01D	Bolt for crankshaft bearing cap	M8	Stage 2	° ∠	90
BA03.20-P-1002-01D	Side crankshaft bearing cap bolt	M8	Stage 1	Nm	20
BA03.20-P-1002-01D	Side crankshaft bearing cap bolt	M8	Stage 2	° ∠	90
BA03.20-P-1003-01D	Bolt for crankshaft bearing cap	M10	Stage 1	Nm	5
			Stage 2	Nm	30
			Stage 3	∠°	90

Lubricate bolts (1 to 30) of crankshaft bearing cap and the crankshaft fitted bearing cap on thread and bolt head contact surface.

Tighten bolts (1 to 30) in the numbering sequence.
Arrow identifies direction of travel.

If no torquing angle wrench is available at the final tightening stage, the bolts can be turned further using a socket wrench and locking handle all in a single operation. Do not use a flexirod torque wrench for tightening in order to avoid any angle errors.

To loosen the bolts (1 to 30), proceed in reverse order.

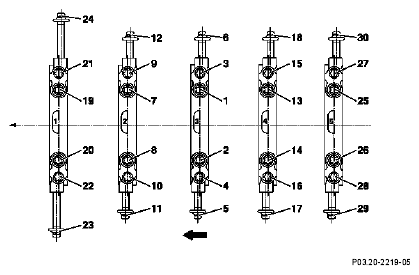

Fig 1: Tightening Sequence Of Crankshaft Head Contact Bolts
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
