Tightening diagram of crankshaft bearing caps - AR03.20-P-4351-02BV

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
MODIFICATION NOTES

26.3.04 BA basic data removed

Tightening diagram

Tighten bolts of crankshaft bearing caps (1 to 26) in the order of the tightening diagram (1 to 26)

IMPORTANT To loosen the bolts (1 to 26), proceed in the reverse sequence.

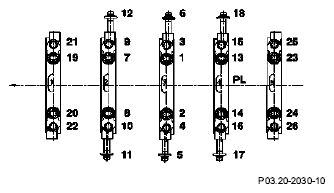

Fig 1: Identifying Crankshaft Bearing Caps Bolts Tightening Sequence
G05257327Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
