Disconnect, connect engine wiring harness - AR01.00-P-2410GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164

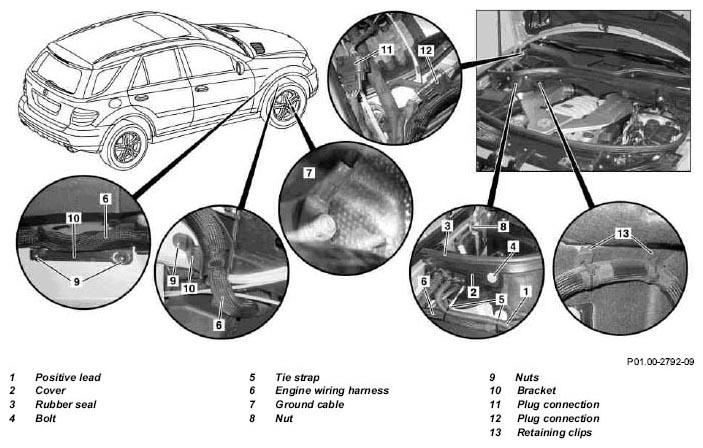

Fig 1: Identifying Engine Wiring Harness Components - Engine 156
G05257155Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking.
Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.
AS54.10-Z-0001-01A
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
1 Open engine hood and raise to vertical position   AR88.40-P-1000GZ
2 Disconnect battery ground cable   AR54.10-P-0003GZ
NOTES Notes on battery All models AH54.10-P-0001-01A
3 Pull off rubber seal (3) IMPORTANT Only in area of cable passage.
4 Unscrew bolt (4)
5 Unclip cover (2)
6 Remove nut (8), detach positive lead (1).
7 Remove positive line (1) from cable passage IMPORTANTRemoval:  Remove cable tie (5) and lay positive line (1) on engine.
IMPORTANTInstallation:  Replace tie straps (5).

8 Unscrew ground line (7) between alternator and body IMPORTANT Unscrew ground line (7) at body.
9 Disconnect connector (11, 12)
10 Disconnect connector at engine control unit IMPORTANT See: ↓
    Remove/install injection system control unit AR07.08-P-7008GZS
11 Remove nuts (9), push engine wiring harness (6) with bracket (10) through wheelhouse in direction of engine compartment IMPORTANTRemoval:  Detach fuse box to weave out engine wiring harness (6). Unclip retaining clamps (13) and lay engine wiring harness (6) on engine.
12 Unscrew ground line (7) on the right at body frame
13 Disconnect plug connections of O2 sensors IMPORTANT The connectors are located below the transmission bell.
14 Remove shield at transmission   AR27.40-P-0700-01GZ
    TORQUE SPECIFICATION *BA27.40-P-1014-01A
15 Detach connector for transmission control
16 Install in the reverse order
17 Perform basic programming   AR00.19-P-0200GZ
HOUSING

Number Designation Transmission 722.9
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9
