Remove/install shield at transmission - AR27.40-P-0700-01GZ

HOUSING

Number	Designation		Transmission 722.9
BA27.40-P-1014-01A	Bolt, heat shield to transmission housing	Nm	9

Unscrew bolt (1) and remove shield (2) downwards.
Press cable holder (4) out of shield (2) and remove shield (2).
Installation: The shield (2) must be positioned under the leaf spring (3).

The leaf spring (3) must be modified if a new transmission is installed.
Install in the reverse order.
Shown on transmission 722.906

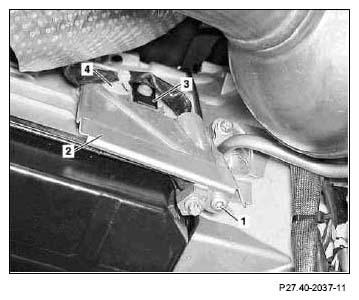

Fig 1: Identifying Bolt, Shield, Leaf Spring And Cable Holder
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
