Replace the oil pump chain - AR18.10-P-2140SX (ML350, ML550, GL450, GL550): Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273
| Removing | ||

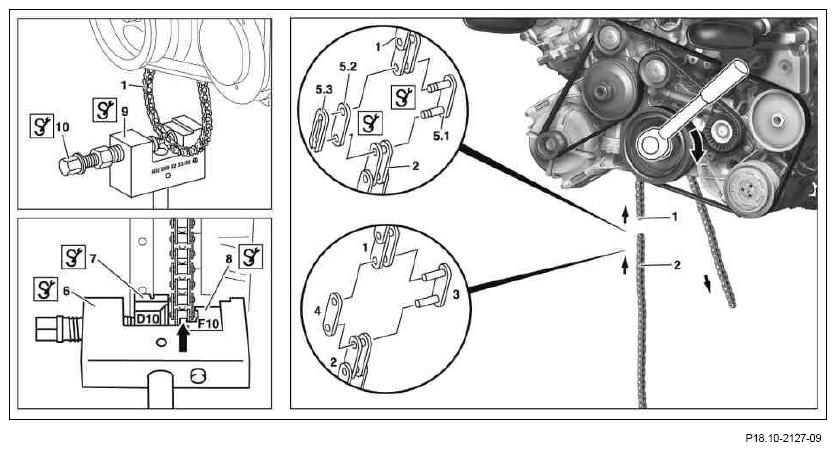

| 1 | Remove oil pump | |
| 2 | Separate the old pump chain (1) | AR18.10-P-2140-01TX |
| Installing | ||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02TX |
| 4 | Install oil pump |
