Remove/install oil sensor - AR18.40-P-5112GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

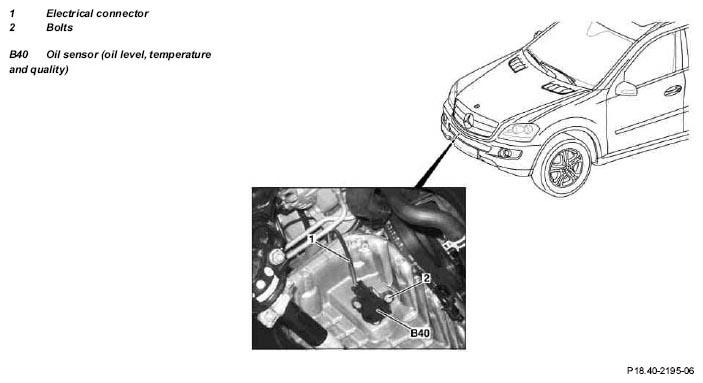

Fig 1: Identifying Oil Sensor And Electrical Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000GZ
	Risk of death cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
2	Raise vehicle.		AR00.60-P-1000GZ
3	Remove lower engine compartment paneling	Installation: Install engine compartment paneling only after the engine test run.	AR61.20-P-1105GZ
4	Drain engine oil	Installation: Replace sealing ring of oil drain plug, see: ↓
		Engine oil and filter change	AP18.00-P-0101GZ
			*BA01.45-P-1003-01B
			*BF18.00-P-1001-01H
5	Detach electrical connector (1) from oil sensor (oil level, temperature and quality) (B40)
6	Unscrew bolts (2) and take oil sensor (oil level, temperature and quality) (B40) out of oil pan	Installation: Replace sealing ring of oil sensor (oil level, temperature and quality) (B40).
			*BA18.40-P-1005-01B
7	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
8	Conduct engine test run and check the engine for leaks

OIL PAN

Number	Designation			Engine 113.964
BA01.45-P-1003-01B	Oil drain screw to oil pan	M14	Nm	30

OIL LEVEL/OIL PRESSURE SENSOR

Number	Designation		Engine 113.964
BA18.40-P-1005-01B	Oil level sensor tot oil pan bottom section	Nm	10

ENGINE LUBRICATION

Number	Designation			Engine 113.964/971
BF18.00-P-1001-01H	Engine oil	Filling capacity with oil filter	Liters	8.5
		Filling capacity without oil filter	Liters	-
		Specifications for Operating Fluids	Sheet	BB00.40-P-0229-01A
			Sheet	BB00.40-P-0229-03A
			Sheet	BB00.40-P-0229-05A
