Remove/install oil pressure relief valve - AR18.10-P-5031GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

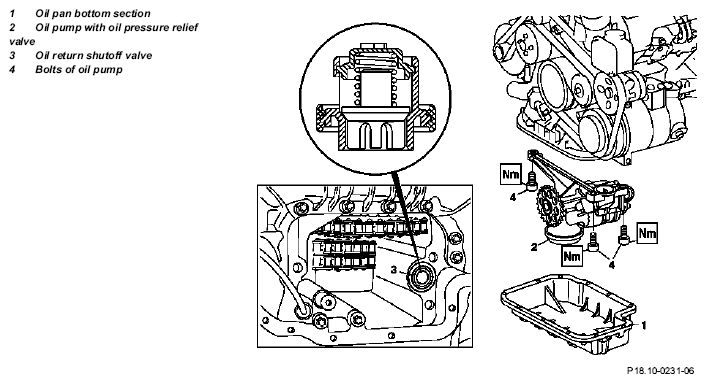

Fig 1: Identifying Oil Return Shutoff Valve, Oil Pump Bolts And Oil Pump Bottom Section

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove oil pan bottom section (1)		AR01.45-P-7555GZ
2	Remove oil pan		AR01.45-P-7500GZ
3	Remove oil pump with oil pressure relief valve (2)	Installation: Ensure oil return flow check valve (3) is correctly installed. Clean the oil pump strainer. Fill the oil pump with engine oil before installing, so that oil is delivered at the initial startup.	AR18.10-P-6020GZ
4	Replace oil pressure relief valve	The oil pressure relief valve is supplied together with the oil pump for repair purposes. It is therefore not necessary to disassemble the oil pump.
5	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
6	Conduct engine test run and check the engine for leaks while it is running	In the event of oil loss determine and eliminate cause, otherwise malfunctions, transmission damage, and serious environmental pollution may occur.
