Remove/install engine cover - AR01.10-P-2405GZB

ENGINE 642 in MODEL 164

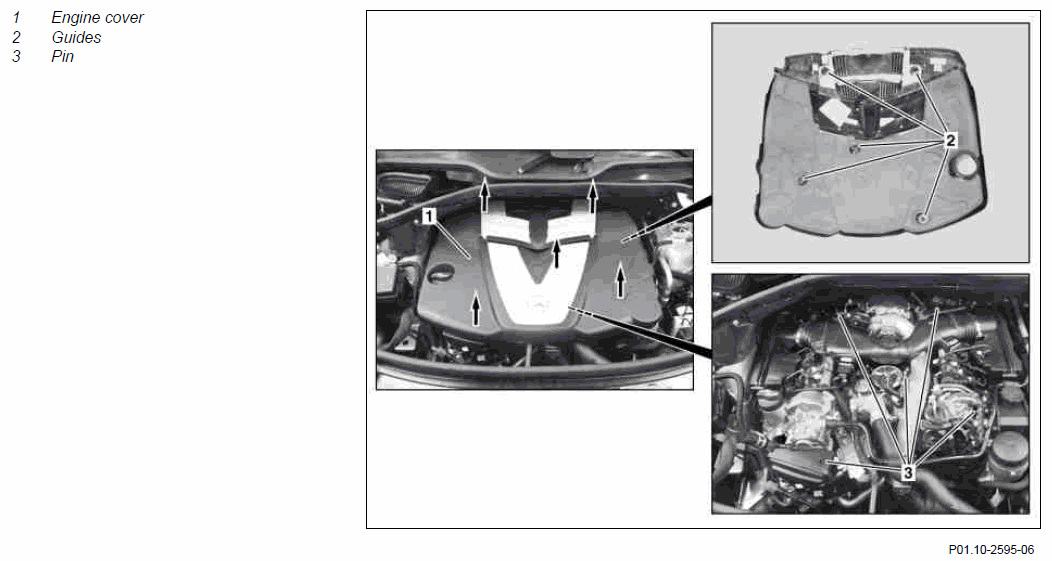

Fig 1: Removing/Installing Engine Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood and raise to vertical position	After closing the engine hood check the locking function, for this step pull engine hood jerkily to the top.	AR88.40-P-1000GZ
2	Removes spring dome strut	Only for model 164.8 Remove spring dome strut at spring dome mounts.	AR62.30-P-2500GY
3	Detach engine cover (1) upwards (arrows) from bolt (3) and remove	Installation:  Cover guides (2) with lubricant.
		Anti-friction agent	*BR00.45-Z-1010-06A
4	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1L	A 000 989 03 67
