Remove/install steering column adjustment switch - AR54.25-P-2804GX
MODEL 463.202/222/236/237, 463.243/244/245/246/247/248/249/250/254 as of 1.6.04, 463.270/271/303/306, 463.309/322/323/332/333 as of 1.6.04, 463.336/340/341/346
| Remove/install | |||
|---|---|---|---|
| 1 | Remove steering angle sensor | AR46.10-P-0300GX | |

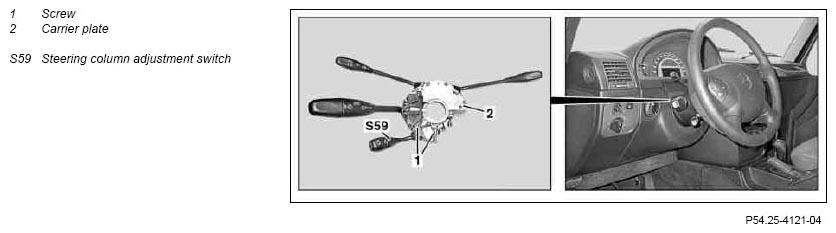

| 2 | Remove bolts (1) | ||
| 3 | Remove steering column adjustment switch (S59) from carrier plate (2) | ||
| 4 | Install in the reverse order | ||
| 5 | Carry out functional test |
