Remove/install ashtray of rear door - AR72.12-P-1041T

MODEL 211.0/2

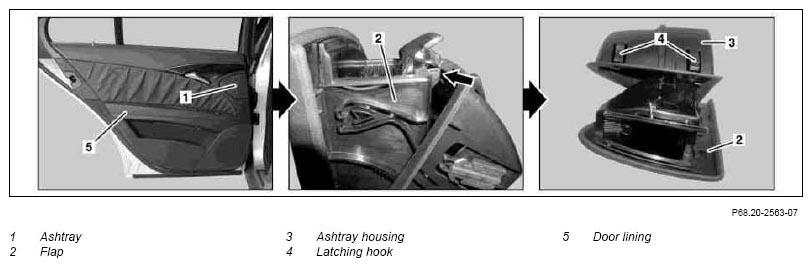

Fig 1: Identifying Rear Door Ashtray Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open ashtray (1) and remove ashtray insert
2	Unlock flap (2) on latching hook (arrow)
3	Unclip ashtray housing (3) at latching hook (4) from door lining (5) and remove	When unclipping ashtray housing (3) carefully press ashtray housing (3) off of door lining (5) at the same time with a mounting wedge. Installation:  Ashtray (3) should arrest in door lining (5) perceptibly	Figure
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
