Remove/install front door - AR72.10-P-0500T
MODEL 211.0/2/6
Shown on left front door
MODIFICATION NOTES
| 28.3.07 | Notes on replacing a door added |
| Remove/install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Completely lower crank window | ||

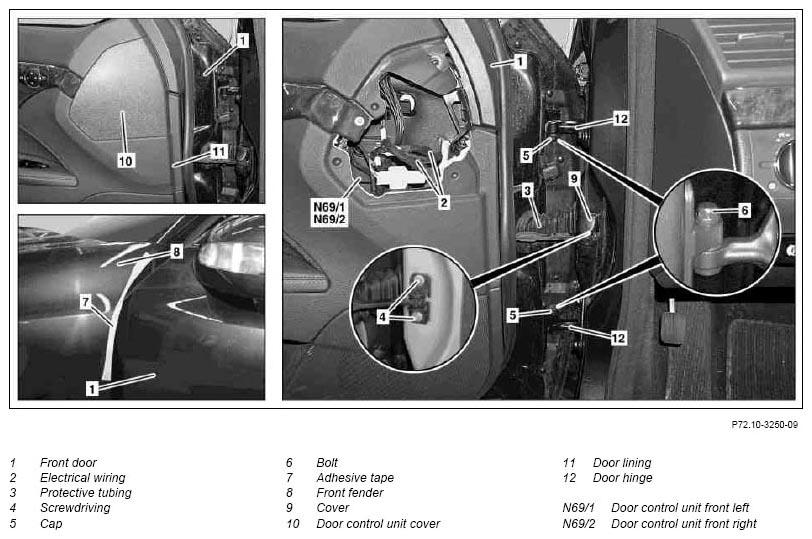

| 2 | Unclip door control unit cover (10) from door lining (11) with mounting wedge | Fig 2 | |
| 3 | Move connectors of electrical lines (2) into front door (1), disconnect from left front door control unit (N69/1) or right front door control unit (N69/2) |
||
| 4 | Unclip protective hose (3) with mounting wedge at front door (1) | Fig 2 | |
| 5 | Pull electrical line (2) out of front door (1) toward front | ||
| 6 | Install adhesive tape (7) on front fender (8) as shown | ||
| 7 | Remove cover (9). | ||
| 8 | Remove bolts (4) | *BA72.10-P-1001-01AB | |
| 9 | Remove cover caps (5) | ||
| 10 | Remove bolts (6) | *BA72.10-P-1010-01AB | |
| 11 | Remove front door (1) upward from door hinges (12) with aid of helper and lay down on suitable subsurface | When replacing a door↓ When replacing a door, perform seam sealing and cavity preservation. Check rubber seal for corrosion and clean if necessary Treat door frame in area of contact surface of rubber seal with MB preservative |
*BR00.45-Z-1003-05A |
| 12 | Install in the reverse order | ||
| 13 | Check gaps of front door (1), adjust front door (1) if necessary. | AR72.10-P-0550T |
FRONT DOOR
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA72.10-P-1001-01AB | Bolt, door holder at A-pillar | Nm | 10 |
| BA72.10-P-1010-01AB | Bolt on door hinge half connection | Nm | 25 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
