Remove/install center paneling in trunk - AR68.30-P-4810TA

MODEL 211.0 with CODE (924) Bivalent natural gas drive

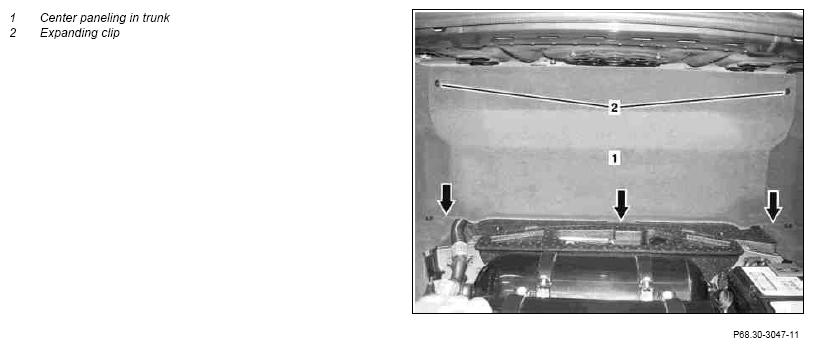

Fig 1: Identifying Trunk Center Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove trunk floor covering from trunk.
2	Remove expanding clips (2) and remove center paneling in trunk (1)	Installation:  Ensure that retainer tabs lugs (arrows) are seated correctly.
3	Install in the reverse order
