Remove/install mirror lens - AR88.70-P-9020TX

MODEL 211.0/2/6 as of 1.6.06, 219, 216, 221

Shown on model 219

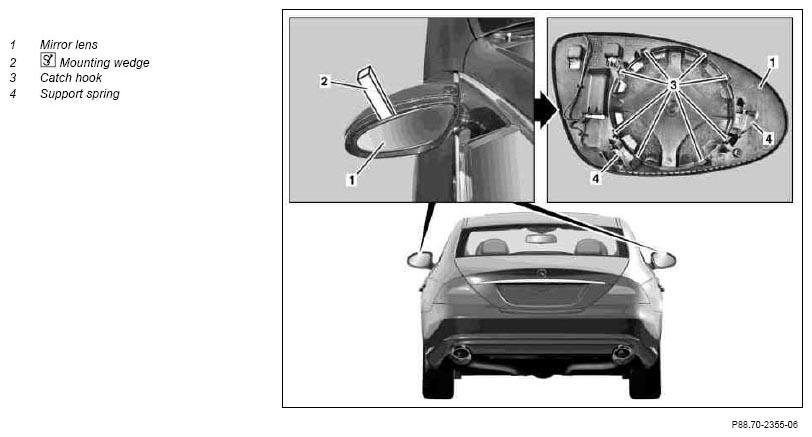

Fig 1: Identifying Mirror Lens Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury  Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens.	Wear protective gloves and safety glasses.	AS60.00-Z-0008-01R
1	Tilt mirror lens (1) out upward
2	Press mirror glass (1) off of mirror glass adjustment drive with mounting wedge (2)	Installation:  Clip mirror lens (1) into glass adjustment drive from bottom upward. Ensure that catch hook (3) arrests completely.	Figure
3	Disconnect electrical connectors and remove mirror lens (1)
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
