Washer nozzles/washer nozzle hose heater, function - GF82.35-P-3003T
MODEL 211.0 /2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 /2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version
MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version with CODE (875) Heated windshield washer system
MODEL 211.0 /2 as of 1.7.06 with CODE (494) USA version with CODE (498) Japan version with CODE (875) Heated windshield washer system

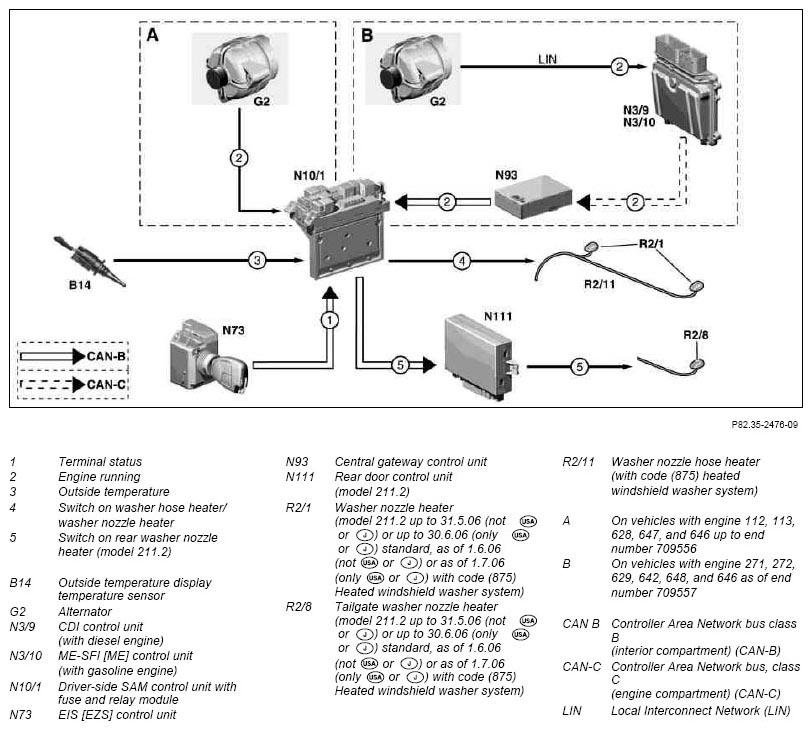

Shown on model 211.2
Function
The washer nozzle heater and the washer nozzle hose heater are automatically switched on if:
- Circuit 61 ON (engine running) and
- an outside temperature of less than 5°C is detected.
Switch off is accomplished automatically when:
- Term. 61 OFF (motor OFF) or
- an outside temperature of greater than 8°C is detected.
Actuation of heating elements
The washer nozzle heater and the washer nozzle hose heater are actuated by the driver-side SAM control unit.
Model 211.2 only
The tailgate washer nozzle heater is actuated by the rear-end door control unit.
In the event of missing or implausible values (outside temperature, circuit 61) the heating elements are not actuated.
| Outside temperature sensor, location/task/function | B14 | GF83.57-P-2110T |
| Driver-side SAM control unit with fuse and relay module, location/task/design | N10/1 | GF54.21-P-4109T |
| Electronic ignition switch control unit, location/task | N73 | GF80.57-P-4120T |
| Central gateway control unit, location/task | N93 | GF00.19-P-4100T |
| Rear-end door control unit, location/task | N111 Model 211.2 |
GF68.80-P-4002TA |
