Destination guidance, function - GF82.61-P-3012T

MODEL 211.0 /2 up to 31.5.06 with CODE (525) MB Audio 50 APS radio with CODE (527) Navigation module for COMAND

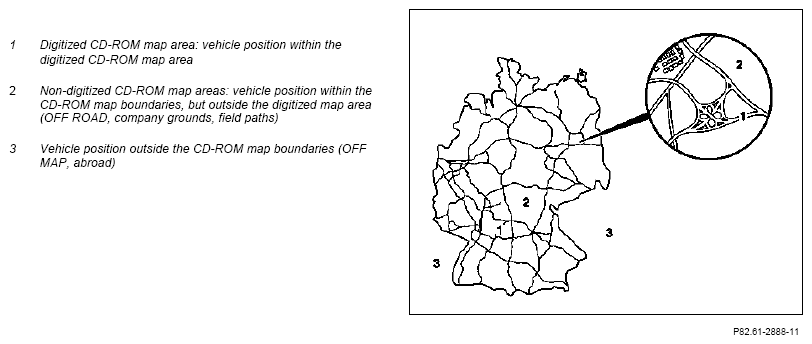

Overview of digitized and non-digitized CD-ROM map areas

Fig 1: Identifying CD-ROM Map Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Destination guidance, function

Destination guidance includes making up and outputting driving recommendations to guide the driver to the desired destination. The prerequisites of destination guidance include:

• Continuous position finding is in operation.
• The trip destination has been entered.
• Route has been calculated.

The navigation processor (N41/1) continuously compares the route calculation data with the position finding data and derives from this the measures for continued navigation.

Depending on the position of the vehicle, a distinction can be made between the following two destination guidance system modes:

• Destination guidance within the digitized CD-ROM map area
• Restricted destination guidance outside the digitized CD-ROM map area

The navigation processor for the radio control panel and navigation unit (A2/56), with code (525) MB Audio 50 APS radio, is integrated into the operating unit. With the COMAND operating, display and control unit (A40/3), with code (527) COMAND APS (with navigation), the external navigation module is referred to as a navigation processor (N41/1).
