Remove/install main audio components - AR82.60-P-7605T
MODEL 211.0 up to 1.6.08 except CODE (809) Model year 2009
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Transfer basic data for audio gateway control unit (N93/1) to STAR DIAGNOSIS | When replacing the audio gateway control unit (N93/1). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Release SAM control unit with fuse and relay box in luggage compartment and place to one side with lines attached | AR54.21-P-1258T | |
| 3 | Remove pressurized-type reservoir for dynamic seat control | Only in vehicles with code (433) Left dynamic seat, incl. multicontour seat or with code (434) Right dynamic seat, incl. multicontour seat | AR91.25-P-1570T |

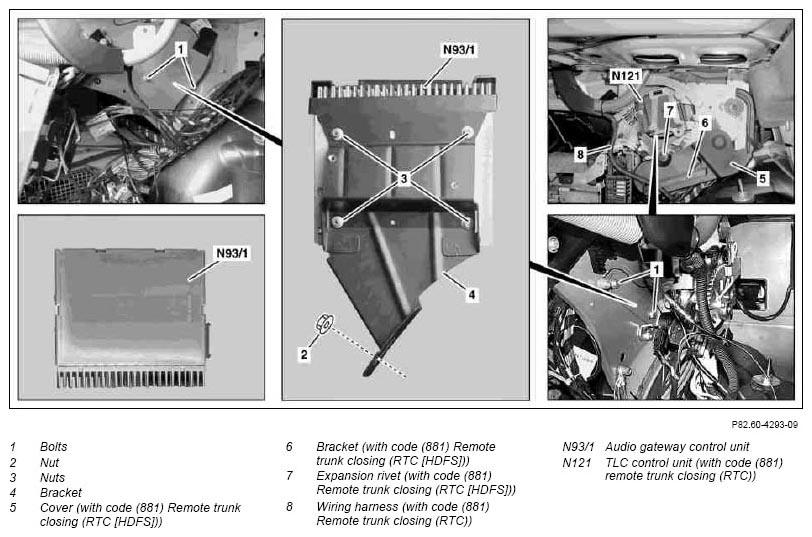

| 4 | Unclip bracket (6) and place wiring harness (8) to one side | Only in vehicles with code (881) Remote trunk closing (RTC [HDFS]). | |
| 5 | Remove expansion rivet (7) and remove cover (5) | Only in vehicles with code (881) Remote trunk closing (RTC [HDFS]). | |
| 6 | Unclip TLC [HDS] control unit (N121) from bracket and place to one side with lines attached | Only in vehicles with code (881) Remote trunk closing (RTC [HDFS]). | |
| 7 | Remove bolts (1) | ||
| 8 | Unscrew nuts (2) | ||
| 9 | Pull audio gateway control unit (N93/1) out until the electrical plug connections at the audio gateway control unit (N93/1) are accessible | ||
| 10 | Unplug electrical plug sockets on audio gateway control unit (N93/1) | ||
| 11 | Disconnect fiber optic cable connector from audio gateway control unit (N93/1) | ||
| 12 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 13 | Remove nuts (3) and remove audio gateway control unit (N93/1) from bracket (4) | Only when replacing the audio gateway control unit (N93/1). | |
| 14 | Install in the reverse order |
