Remove/install bass speaker amplifier - AR82.62-P-7719T
MODEL 211.0 as of 2.6.08 with CODE (810) Sound system with CODE (924) Bivalent natural gas drive
MODEL 211.0 with CODE (809) Model year 2009 with CODE (810) Sound system with CODE (924) Bivalent natural gas drive
| Remove/install | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |

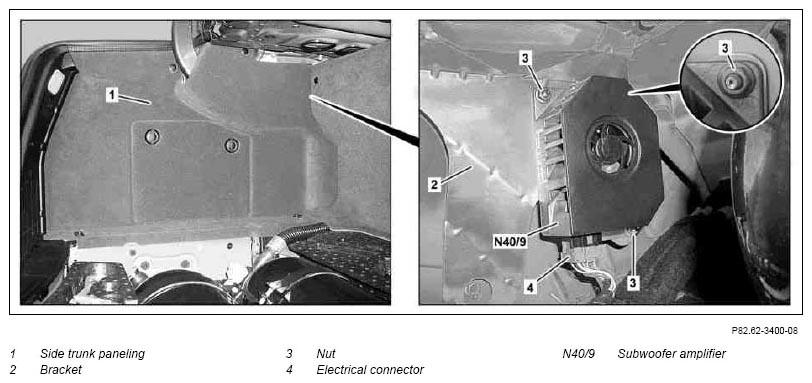

| 1 | Remove left side paneling in trunk | AR68.30-P-4800TB |
| 2 | Disconnect electrical connector (4) | |
| 3 | Unscrew nuts (3) | |
| 4 | Remove subwoofer amplifier (N40/9) from bracket (2) | |
| 5 | Install in the reverse order |
