Remove and reinstall switch group at overhead control panel control unit - AR82.20-P-1005T

MODEL 211.0 /2 with CODE (383b) CP High telephone system with CODE (384) Phone preinstallation for USA with CODE (551a) Anti-theft alarm system (ATA)

MODEL 211.6 with CODE (551a) Anti-theft alarm system (ATA)

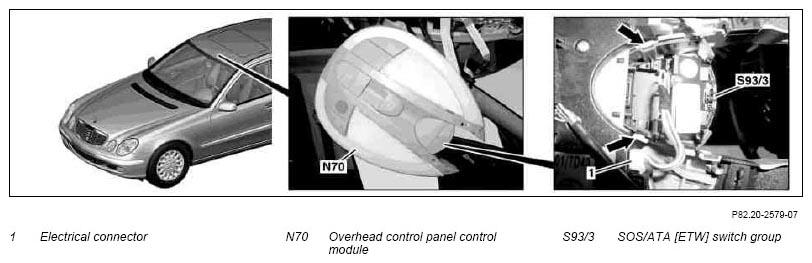

Fig 1: Identifying Overhead Control Panel Control Module Switch Group Components
G07504827Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Remove inside rearview mirror   AR68.40-P-0001T
2 Disconnect electrical connector (1) for SOS/ ATA switch group (S93/3) at overhead control panel control unit (N70)
3 Using a suitable screwdriver, release SOS/ ATA switch group (S93/3) at retaining lugs (arrows) NOTES Use care when releasing retaining lugs (arrows) to prevent them from breaking
4 Install in the reverse order
