Remove/install inside rearview mirror - AR68.40-P-0001T
MODEL 211.0/2/6
Shown on model 211.0
MODIFICATION NOTES
| 17.10.05 | Disconnect ground line of battery, removed | Step 2 |
| Remove/install | |||
|---|---|---|---|
| Risk of injury Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Switch off the ignition and remove the transmitter key from the EIS control unit | On vehicles without code (889) Keyless Go | |
| 1.2 | Switch off ignition and place transmitter key out of transmission range of vehicle | On vehicles with code (889) Keyless Go | |

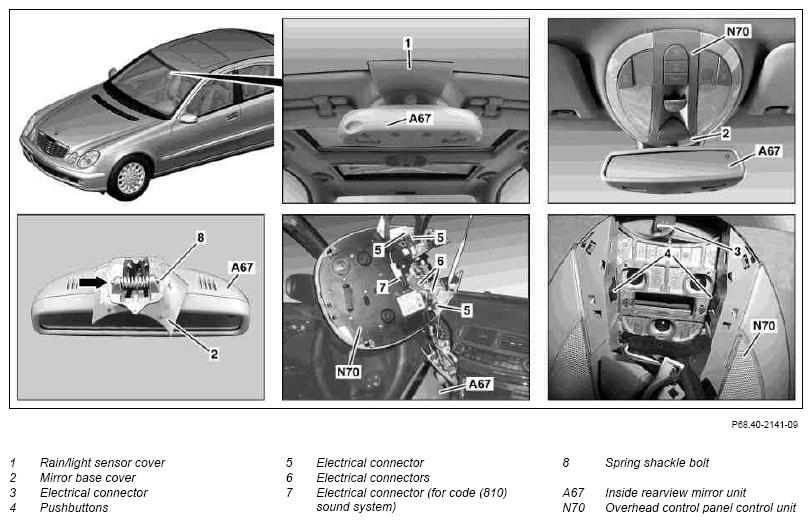

| 2 | Pry off rain/light sensor covering (1) with mounting wedge toward bottom and remove | Figure | |
| 3 | Unclip mirror base cover (2) from overhead control panel control unit (N70) | ||
| 4 | Release inside rearview mirror unit (A67) by pivoting to the side at the mirror base and at the same time pulling downward out of the mirror mount. | ||
| 5 | Disconnect electrical connector (3) from rain/light sensor | ||
| 6 | Release overhead control panel control unit (N70) at front by pressing pushbuttons (4) | ||
| 7 | Release overhead control panel control unit (N70) at rear by pushing on it from the side with the mounting wedge | Figure | |
| 8 | Disconnect electrical connectors (5) on ribbon cable from overhead control panel control unit (N70) | ||
| 9 | Allow overhead control panel control unit (N70) top hang from wiring harness | ||
| 10 | Disconnect electrical connector (7) | Only on vehicles with code (810) Sound system. | |
| 11 | Disconnect electrical connectors (6) of inside rearview mirror (A67) from overhead control panel control unit (N70) and remove inside rearview mirror unit (A67) | ||
| 12 | Install in the reverse order | ||
| 13 | Program garage door opener transmitter unit | Only when replacing inside rearview mirror (A67) on vehicles with code (231) Garage door opener or code (232) Garage door opener with frequency 284-390 MHz. | |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A |
