Remove/install antenna amplifier module - AR82.62-P-8300TB

MODEL 211.2 with CODE (860) TV tuner with CODE (889) Keyless go

Right antenna amplifier module

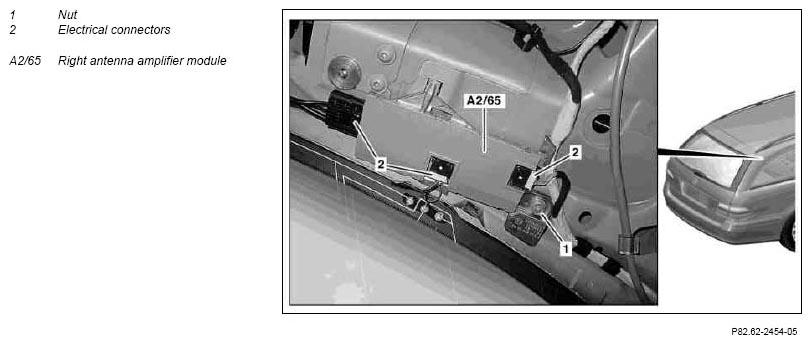

Fig 1: Identifying Right Antenna Amplifier Module, Electrical Connectors & Nut

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Notes on avoiding damage to electronic components due to electrostatic discharge	AH54.00-P-0001-01A
1	Remove paneling on right D-pillar	AR68.30-P-4495T
2	Unscrew nuts (1)
3	Disconnect electrical connectors (2) and right antenna amplifier module (A2/65)
4	Install in the reverse order
