Remove/install antenna amplifier module - AR82.62-P-8300TA

MODEL 211.2/6

Left antenna amplifier module

Shown on model 211.2

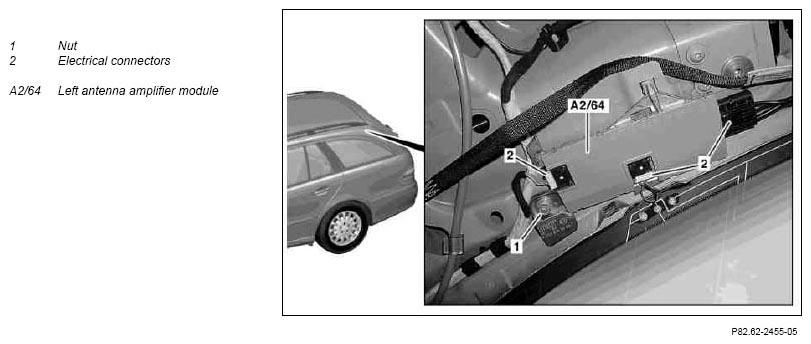

Fig 1: Identifying Left Antenna Amplifier Module, Electrical Connectors & Nut

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Remove D-pillar paneling on left	Model 211.2	AR68.30-P-4495T
1.2	Remove existing paneling on left D-pillar until the left antenna amplifier module (A2/64) is accessible	Model 211.6 Whether paneling exists or what paneling version is used depends on the vehicle equipment.
2	Unscrew nut (1)
3	Disconnect electrical connectors (2) and left antenna amplifier module (A2/64)
4	Install in the reverse order
