Drain, fill coolant - AR20.00-P-1142TS

ENGINE 272, 273 in MODEL 211, 219

Shown on engine 272.964

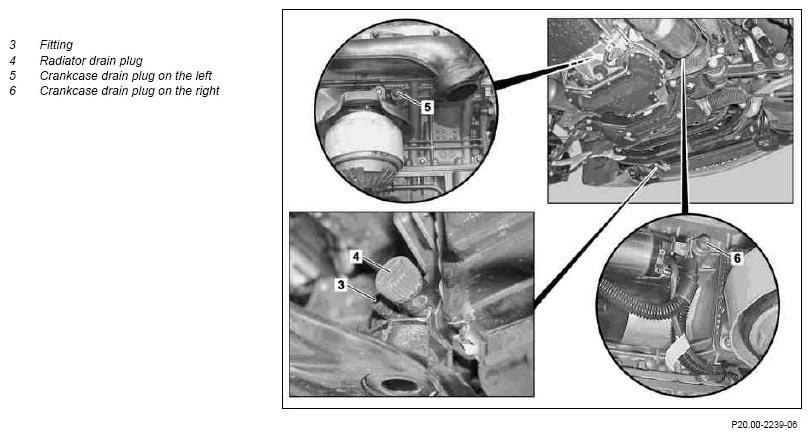

Fig 1: Identifying Fitting, Radiator Drain Plug, And Crankcase Drain Plugs

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Drain
	Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
1	Disconnect ground line from battery	When draining the coolant at the right drain plug (6) on the crankcase
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
2	Unscrew the cap of the coolant expansion reservoir	Slowly unscrew the cap and reduce the excess pressure.
3	Remove the front section of the lower engine compartment paneling	Model 211	AR61.20-P-1105T
		Model 219.3	AR61.20-P-1105TX
	Drain coolant from radiator
4	Slide the siphon hose on to the left fitting (3) at the radiator
5	Loosen siphon hose (4) at radiator and drain coolant.	Follow regulations for the disposal of coolant.
6	Tighten the drain plug (4) at the radiator and detach the siphon hose from the fitting (3)
	Drain coolant at crankcase
7	Loosen left crankcase drain plug (5) and right crankcase drain plug (6) at crankcase until they can be turned by hand
8	Loosen left or right crankcase drain plug (5) and slide siphon hose onto right crankcase drain plug (6)
9	Continue to manually loosen left crankcase drain plug (5) and right crankcase drain plug (6) and drain off coolant	Follow regulations for the disposal of coolant.
10	Detach drain hose and tighten drain plug on left crankcase (5) or drain plug on right crankcase (6)		*BA20.00-P-1001-02E
	Filling
11	Pour in coolant and bleed cooling system	Reuse clean coolant.	AR20.00-P-1142-04A
	Coolant specifications	Sheet 310.1	BB00.40-P-0310-01A
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	BB00.40-P-0325-00A
			*BF20.00-P-1001-02U
	Notes on coolant level		AH20.00-P-1142-01V
12	Inspect cooling system for leaks		AR20.00-P-1010TS
13	Attach ground lead to battery	After draining coolant at right drain plug (6) on crankcase
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219.3	AR54.10-P-0003TX
14	Fit front section of lower engine compartment paneling	Model 211	AR61.20-P-1105T
		Model 219.3	AR61.20-P-1105TX
