Pull tapered roller bearing outer races into rear axle housing - AR35.31-P-0550-14T

Fig 1: Identifying Installer (140 589 01 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Pull in the front tapered roller bearing outer race (43e) and rear tapered roller bearing outer race (46b) all the way into the rear axle housing using the installer (060a to 060d).

Ensure that the shim (45) is inserted. Do not tilt the tapered roller bearing-outer races (43e, 46b) when pulling in.

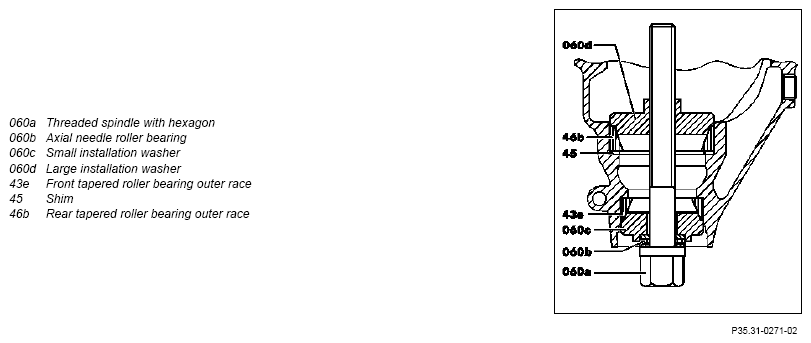

Fig 2: Pulling Tapered Roller Bearing Outer Races Into Rear Axle Housing

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
