Remove/install tilting/sliding roof motor - AR77.20-P-3010T
MODEL 211.0/2, 240.0 with CODE (414) Power glass tilting/sliding roof
Shown on model 240
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Close tilting/sliding roof | ||
| 2.1 | Remove overhead control panel control unit | Model 211.0/2 | AR82.20-P-1000T |
| Model 240 | AR82.20-P-1000H | ||
| 3.1 | Remove front headliner | On model 240.0 | AR68.30-P-7607HA |

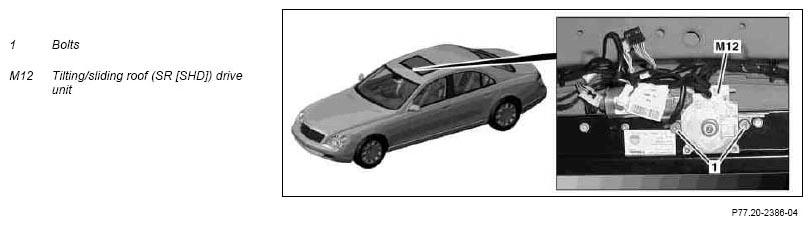

| 4 | Unscrew screws (1) from tilting/sliding roof (SR) drive unit (M12). | *BA77.20-P-1002-01A | |
| 5 | Remove tilting/sliding roof (SR) drive unit (M12) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform teach-in run for sliding roof anti-pinch protection | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
ELECTRIC SLIDING ROOF
| Number | Designation | Model 211 | Model 240 | ||
|---|---|---|---|---|---|
| BA77.20-P-1002-01A | Bolt to sliding roof drive | Torx | Nm | 4 | 4 |
| Hexagon socket | Nm | - | - | ||
