Remove/install roof railing - AR77.40-P-5000T
MODEL 211.2

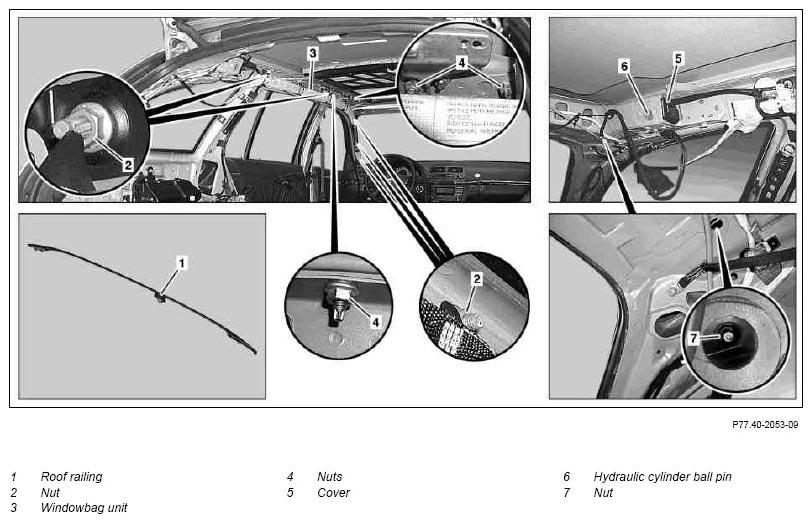

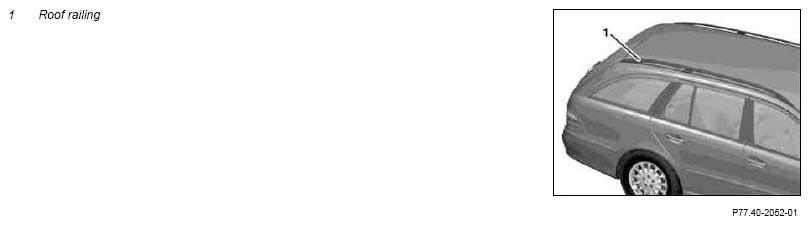

Shown on right roof railing
| Remove/Install | |||
| 1 | Remove headliner | AR68.30-P-4300TD | |
| 2 | Unscrew nuts (2) and loosen windowbag (3) from roof frame until nuts (4) are accessible | *BA91.60-P-1005-01A | |
| 3 | Unscrew nuts (4) | *BA77.40-P-1001-01A | |
| 4.1 | Unclip cover (5) and slide back | Only on vehicles with code (890) Automatic rear door | |
| 5.1 | Unclip tailgate actuation hydraulic cylinder from hydraulic cylinder ball pin (6) and lay to side until nut (7) is accessible | Only on vehicles with code (890) Automatic rear door | |
| 6 | Unscrew nut (7) | *BA77.40-P-1001-01A | |
| 7 | Remove roof railing (1) from vehicle roof | ||
| 8 | Install in the reverse order |
ROOF RAILING
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA77.40-P-1001-01A | Nut for roof railing | Nm | 9 |
AIRBAG
| Number | Designation | Model 211.2 | |
|---|---|---|---|
| BA91.60-P-1005-01A | Nut, windowbag unit to roof frame | Nm | 6 |
