Remove/install compensator control unit - AR82.70-P-0030TA

MODEL 211.2/6 up to 1.6.08 except CODE (809) Model year 2009 with CODE (380) Preinstallation for MB telephone "Cell phone", complete with CODE (382) MB telephone "Cell phone" in armrest

Shown on model 211.2

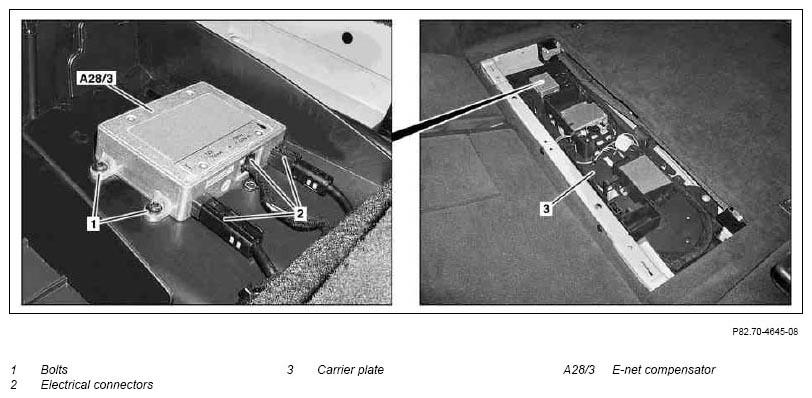

Fig 1: Identifying Compensator Control Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Remove front section of load compartment floor	Model 211.2	AR68.20-P-4811T
1.2	Remove existing load compartment floor until the E-net compensator (A28/3) is accessible	Model 211.6 Whether a load compartment floor exists or what load compartment floor version is used depends on the vehicle equipment.
2	Remove bolts (1)
3	Separate electrical connectors (2)
4	Remove E-net compensator (A28/3) from the carrier plate (3)
5	Install in the reverse order
