Remove/install load compartment floor front section - AR68.20-P-4811T

MODEL 211.2

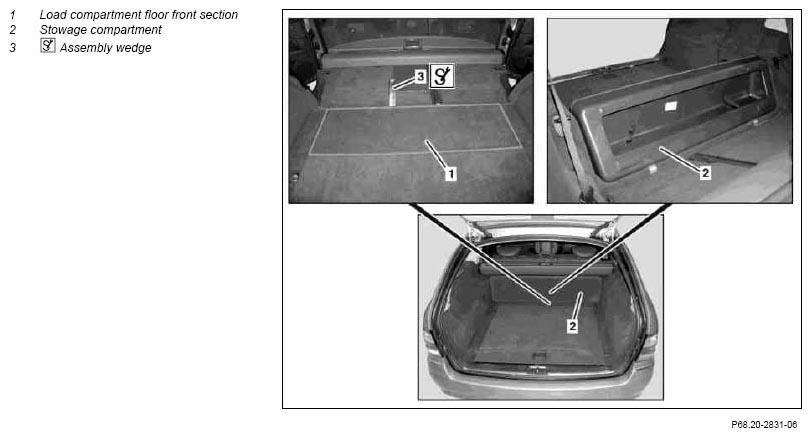

Fig 1: Identifying Load Compartment Floor Front Section Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove stowage compartment (2) from load compartment.	See Owner's Manual
2	Unclip load compartment floor front section (1) with assembly wedge (3) and remove		*110589035900
3	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
