Install, remove engine charge air duct at turbocharger - AR09.41-P-8622TI

ENGINE 642 in MODEL 211

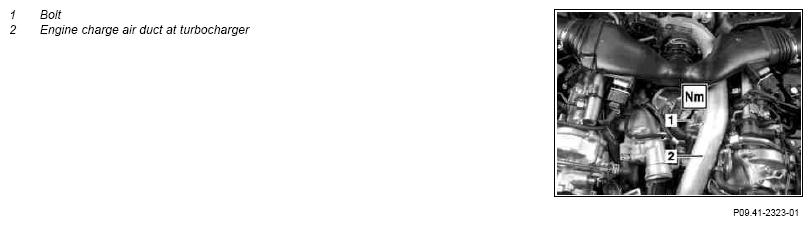

Fig 1: Identifying Engine Charge Air Duct At Turbocharger And Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove engine cover		AR01.10-P-2405TI
2	Remove engine charge air duct upstream of charge air cooler		AR09.41-P-8623TI
		Engine charge air duct upstream of charge air cooler to bracket	*BA09.41-P-1002-01J
		Engine charge air duct upstream of charge air cooler to oil filter housing	*BA09.41-P-1003-01J
3	Remove screw (1)	Bolt, engine charge air duct of turbocharger to charge air distribution pipe	*BA09.41-P-1001-01J
4	Remove engine charge air duct at turbocharger (2) from the front	Installation:  Check the sealing rings and replace if necessary.
5	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1001-01J	Bolt, engine charge air duct of turbocharger to charge air distribution pipe	Nm	12
BA09.41-P-1002-01J	Engine charge air duct upstream of charge air cooler to bracket	Nm	6
BA09.41-P-1003-01J	Engine charge air duct upstream of charge air cooler to oil filter housing	Nm	12
