Drain/fill in coolant - AR20.00-P-1142TI
ENGINES 642 in MODEL 211

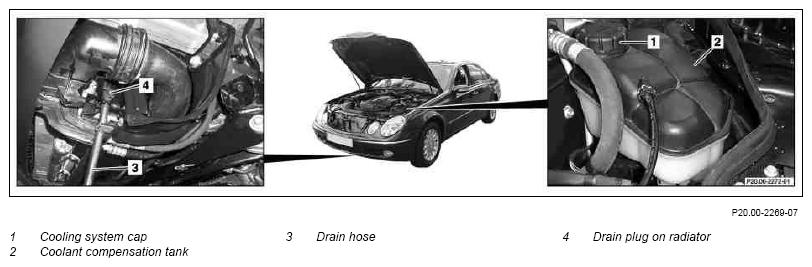

Fig 1: Identifying Cooling System Cap, Drain Hose, Drain Plug On Radiator And Coolant Compensation Tank
| Removing | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Open engine hood | AR88.40-P-1000T | |
| 2 | Open cooling system cap (1) at coolant expansion reservoir (2) | ||
| 3 | Remove front soundproofing bottom section | AR94.30-P-5300T | |
| 4 | Slide drain hose on to left fitting (3) at radiator | ||
| 5 | Slacken siphon hose (4) at radiator and drain coolant. | ||
| Install | |||
| 6 | Pull the drain hose (3) off the fitting | ||
| 7 | Tighten radiator drain plug (4) | ||
| 8 | Pour in coolant and bleed cooling system | AR20.00-P-1142-04TI | |
| Notes on coolant level | AH20.00-P-1142-01TI | ||
| Coolant specifications | Sheet 310.1 | BB00.40-P-0310-01A | |
| Anticorrosion/antifreeze agents (Sheet 325.0) | Sheet 325.0 | BB00.40-P-0325-00A | |
| *BF20.00-P-1001-02W | |||
| Figure | |||
| Figure | |||
| 9 | Inspecting cooling system for leaks | AR20.00-P-1010TI | |
| 10 | Install front noise encapsulation bottom section | AR94.30-P-5300T | |
| 11 | Close cooling system cap (1) at coolant expansion reservoir (2) | ||
| 12 | Close engine hood | AR88.40-P-1000T |
COOLING SYSTEM
| Number | Designation | Engine 642 in model 203, 209, 211, 219, 221 | ||
|---|---|---|---|---|
| BF20.00-P-1001-02W | Cooling system | Quantity changed in workshop | ≈Liters | 7.5 |
| Antifreeze/water | Up to -37°C | 50/50 | ||
| up to -45°C | 55/45 | |||
| Service specifications | Sheet | BB00.40-P-0310-01A | ||
| Sheet | BB00.40-P-0325-00A | |||
