Preparations for distance and comparison measurements - AR40.30-P-0401T

MODEL 211, 219

Shown on model 211

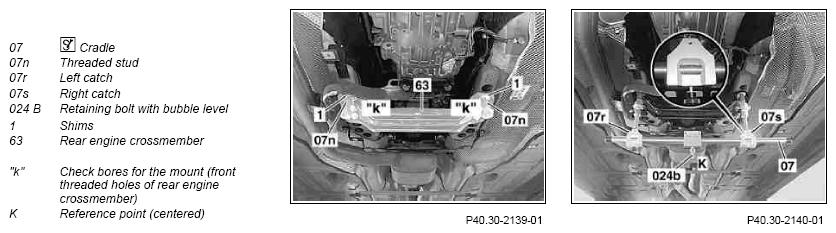

Fig 1: Checking Mount Bores (Front Threaded Holes Of Rear Engine Crossmember) - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

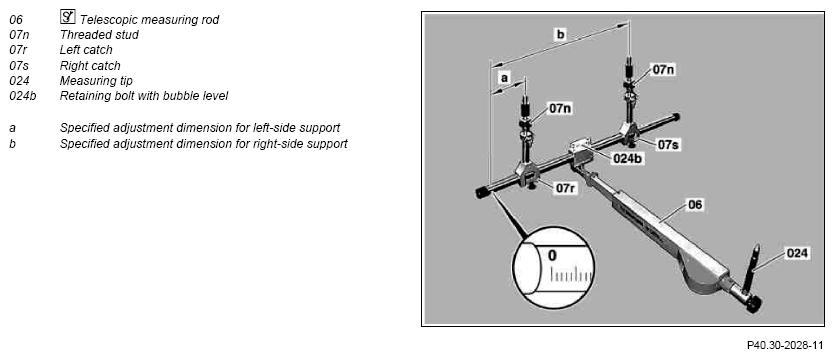

Fig 2: Identifying Left/Right-Side Support Specified Adjustment Dimensions

Courtesy of MERCEDES-BENZ USA

	Removing
1	Align the vehicle	Align the vehicle horizontally in the longitudinal direction by loading with weights as appropriate. Measure the inclination across the door sills, e.g. using a spirit level
2.1	Detach lower engine compartment paneling	Vehicles with gasoline engine
		Model 211	AR61.20-P-1105T
		Model 219	AR61.20-P-1105TX
2.2	Remove bottom section of soundproofing	Vehicles with diesel engine
		Model 211	AR94.30-P-5300T
		Model 219	AR94.30-P-5300TX
3	Remove the left and right underfloor paneling upstream of the rear axle	Model 211	AR61.30-P-1001T
		Model 219	AR61.30-P-1001TX
4	Screw in threaded bolt (07n) of	mount (07) with shims (1) Use washers (1), to ensure that the threaded stud (07n) fits correctly into the rear engine crossmember (63).
			Fig 3
5	Insert suspension (07) horizontally and adjust supports (07r, 07s) to meet specified dimensions		AR40.30-P-0401-01T
6	Insert telescopic measuring rod (06) with connecting parts onto retaining bolt using bubble level (024b)	Use relevant measuring bolt and measuring tip (024) for the corresponding distance or comparison measurement.
			Fig 7
			Fig 4
			Fig 5
			Fig 6
	Measure
7	Carry out distance and comparison measurements on front and rear axles		AR40.30-P-0402T
	Install
8	Detach cradle (07 ) and threaded bolts (07n)
9	Screw in bolts of rear engine crossmember (63)	Model 211	*BA22.10-P-1005-03A
		Model 219 with engine 113, 156, 272, 273	*BA22.10-P-1006-01S
		Model 219 with engine 642	*BA22.10-P-1003-01D
10	Install underfloor paneling	Model 211	AR61.30-P-1001T
		Model 219	AR61.30-P-1001TX
11.1	Install lower engine compartment paneling	Vehicles with gasoline engine
		Model 211	AR61.20-P-1105T
		Model 219	AR61.20-P-1105TX
11.2	Install bottom sections of soundproofing	Vehicles with diesel engine
		Model 211	AR94.30-P-5300T
		Model 219	AR94.30-P-5300TX

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 642 in model 219
BA22.10-P-1003-01D	Bolt/nut, rear engine crossmember to body	Nm	40

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 211 except 4MATIC	Model 211 with 4MATIC
BA22.10-P-1005-03A	Rear engine support to body	Nm	50	50

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 113 in model 219	Engine 272, 273 in model 219
BA22.10-P-1006-01S	Bolt, rear engine crossmember to body	Nm	50	50

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 156.983 in model 219
BA22.10-P-1006-01S	Bolt, rear engine crossmember to body	Nm	40

Fig 3: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
