Remove/install the suspension strut - AR32.25-P-1017TX
MODEL 219.3 except CODE (489) Aromatic (semi-active air suspension)
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or , in extreme cases even sever extremities. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition. | |||
| 1 | Place front wheels in straight-ahead position | ||
| 2 | Remove front wheel | ||
| Remove and install wheels | AP40.10-P-4050TX | ||

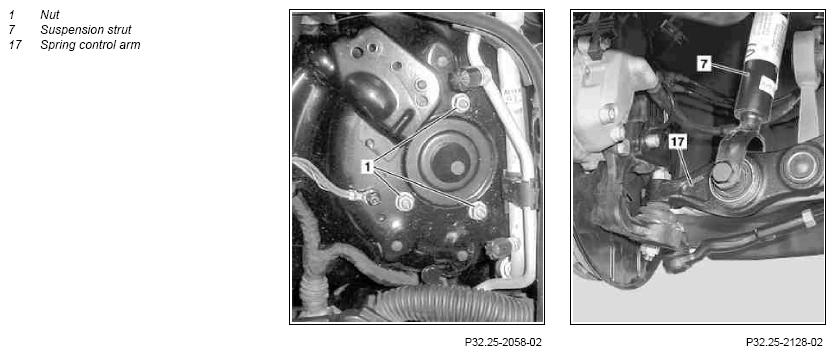

| 3 | Unscrew nuts (1). | *BA32.25-P-1001-04K | |
| 4 | Detach suspension strut (7) from spring control arm (17) | *BA32.25-P-1002-04K | |
| 5 | Press spring control arm (17) downwards and remove spring strut (7) towards the rear | ||
| 6 | Install in the reverse order | ||
| 7 | Check headlamp setting and correct if necessary | After installing new parts | |
| Check and correct headlamp adjustment | AP82.10-P-8260TX |
STRUTS
| Number | Designation | Model 219 with steel suspension | |
|---|---|---|---|
| BA32.25-P-1001-04K | Nut, front suspension strut to front end | Nm | 25 |
| BA32.25-P-1002-04K | Bolt, front suspension strut to spring control arm | Nm | 165 |
