Remove/install wheels, rotate if necessary - AP40.10-P-4050TX

MODEL 219

Fig 1: Identifying Wheels Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wheels Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wheels Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on tires/rims		AH40.10-P-9411-01A
	Remove
1	Raise vehicle with vehicle lift
			AR00.60-P-1000TX
2	Unscrew wheel bolts and remove wheel-and- tire assemblies
	Check
3	Check tires for signs of damage and make sure that they are in good condition		AP40.10-P-4051Z
4	Clean and check wheel bolt connection components, then protect against corrosion		AP40.10-P-4050-01A
		Before mounting a wheel-and-tire assembly all  the operation steps listed in the linked description must be conducted carefully. The complete wheel can otherwise work its way loose from the vehicle.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
	Install

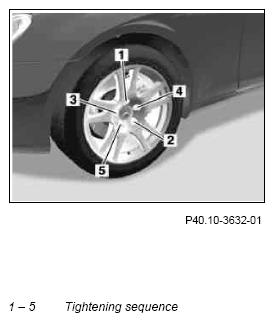

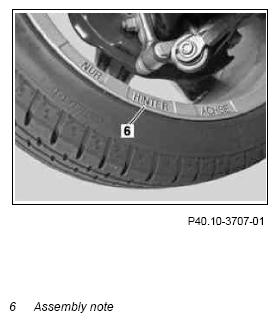

5	Mount wheel-and-tire assembly and tighten wheel bolts	With identical tire dimensions the disk wheels on the front and rear axle also have different wheel offsets. The wheel-and-tire assemblies may therefore not be exchanged axlewise. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased. Observe the tightening sequence (1 to 5) and tightening torque. The disk wheels to be fitted to the rear axle are to be provided with the assembly note (6) "REAR AXLE ONLY".
		Bolt, disk wheel to wheel hub or flange	*BA40.10-P-1001-01I
6	Lower vehicle
7	Correct tire pressure for all wheel-and-tire assemblies		AP40.15-P-4061B
		In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order.
8	Activate the tire pressure monitoring system
		Model 219.3 with code 475 (Tyre pressure monitoring system) Only for wheel-and-tire assembly change, tire replacement or a change in tire pressure.	AR54.30-P-1000-02RAX

WHEELS

Number	Designation		Model 219
BA40.10-P-1001-01I	Bolt, disk wheel to wheel hub or flange	Nm	130

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
