Remove/install rear spring - AR32.20-P-0230TX

MODEL 219.3 except CODE (489) Airmatic (semi-active air suspension)

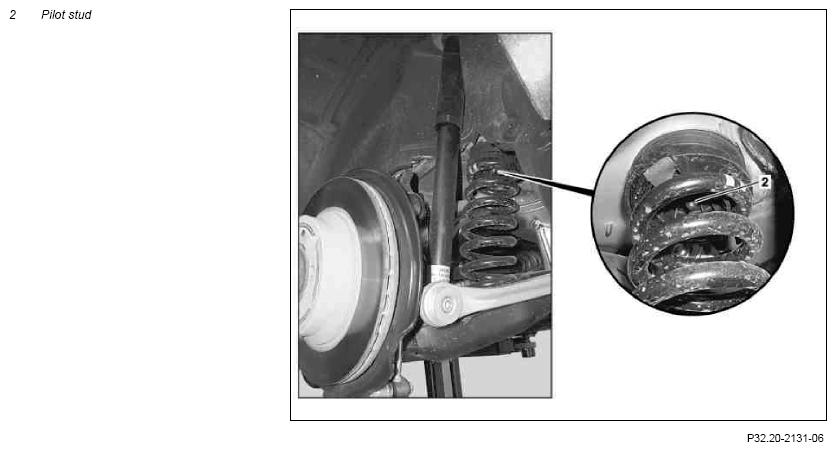

Fig 1: Identifying Rear Spring Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

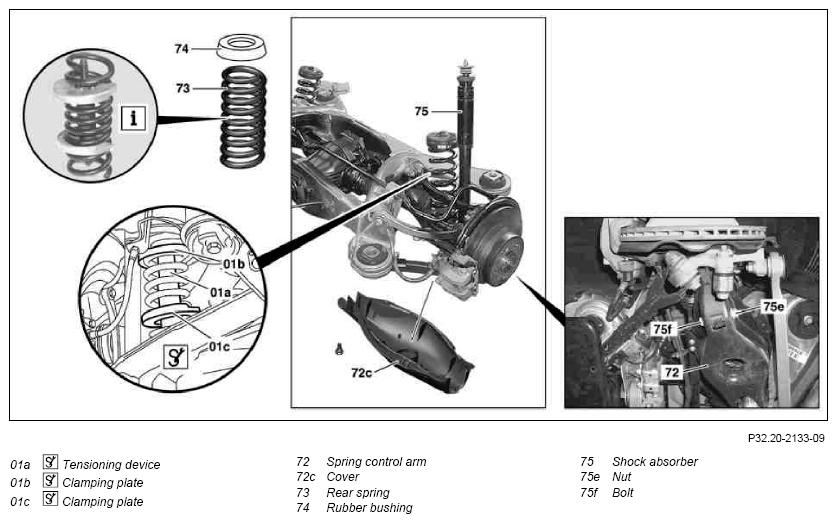

Fig 2: Identifying Rear Spring Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Secure vehicle on the lifting platform		AR00.60-P-0100TX
2	Remove rear wheel
	Remove and install wheels		AP40.10-P-4050TX
3	Remove cover (72c) of spring control arm (72)
4	Remove pilot stud (2)
	Risk of injury  caused by pinching or crushing  when working on springs or spring bodies that are under load	Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
5	Tension rear spring (73)		AR32.20-P-0200-06TX
	Springs; general background information.		AH32.20-P-9404-01A
6	Remove shock absorber (75) of spring control arm (72), to do so undo nut (75e) and remove bolt (75f)	Push together shock absorber and position at side of spring control arm.
			*BA32.25-P-1002-03I
7	Install in the reverse order	Only tighten bolts and nuts of the chassis components in the curb condition.
8	Check headlamp setting and correct if necessary	Only when installing new parts
	Check and correct headlamp adjustment		AP82.10-P-8260TX
