Remove/install torque strut at front axle - AR33.15-P-0160TX
MODEL 219.3
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected | |||
| Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition. | |||
| 1 | Remove front wheel | ||
| Remove/install wheels | AP40.10-P-4050TX | ||
| 2.1 | Remove the front and central sections of the lower engine compartment paneling | Vehicles with gasoline engine | AR61.20-P-1105TX |
| 2.2 | Remove front and center portion of bottom section of soundproofing | Vehicles with diesel engine | AR94.30-P-5300TX |

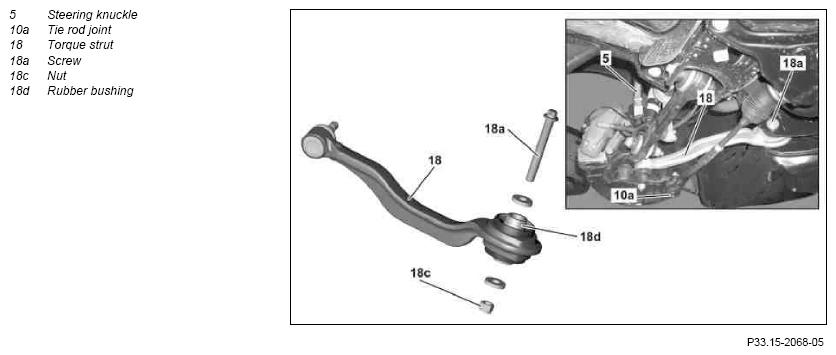

| 3 | Press radius rod (18) out of steering knuckle (5). | AR33.15-P-0160-01TX | |
| *BA33.20-P-1004-01K | |||
| Figure | |||
| Fig 2 | |||
| Fig 3 | |||
| 4 | Undo nut (18c) of torque strut (18) from bolt (18a) | ||
| *BA33.20-P-1006-01K | |||
| 5 | Pull bolt (18a) out of rubber mount (18d) and remove torque strut (18) from front axle carrier | ||
| Checking | |||
| 6 | Check rubber boots on rubber mount (18d) for damage | ||
↓ |
|||
| Remove/install rubber boots on rubber mount. | AR33.15-P-0160-03T | ||
| 7 | Check rubber mount (18d) for signs of damage | ↓ |
|
| Replace rubber mount on torque strut. | AR33.15-P-0160-02T | ||
| Fig 5 | |||
| 8 | Check rubber boot of ball joint of torque strut (18) for damage | ||
| 9 | Install in the reverse order |
WHEEL LOCATION, HUB
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA33.20-P-1004-01K | Self-locking nut, radius rod to steering knuckle | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 60 | ||
| BA33.20-P-1006-01K | Self-locking nut, torque strut to front axle carrier | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 120 | ||
