Remove/install stabilizer bar on front axle - AR32.20-P-0300TX

MODEL 219.3

Shown on model 219 with steel suspension

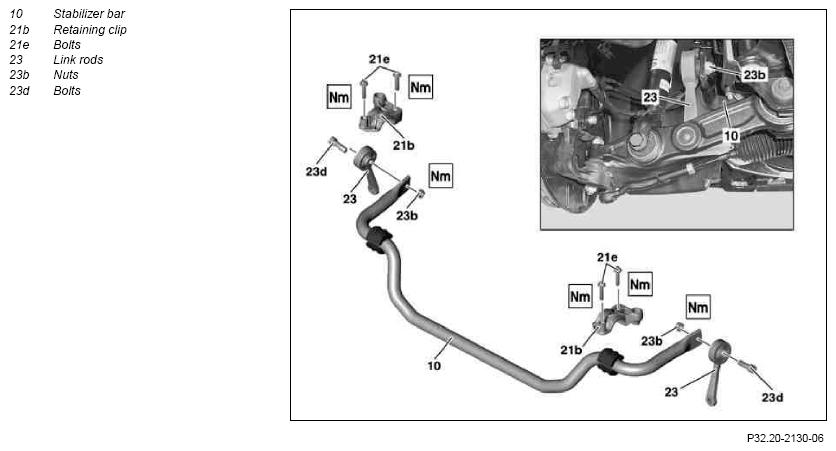

Fig 1: Identifying Stabilizer Bar On Front Axle Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

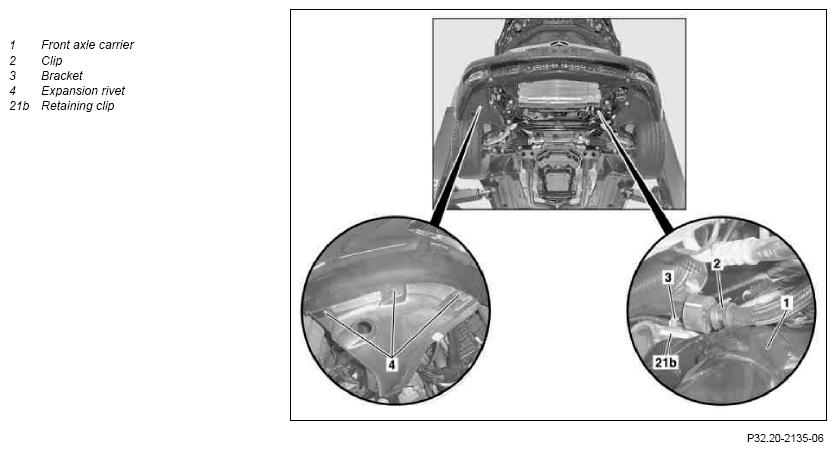

Fig 2: Identifying Stabilizer Bar On Front Axle Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1	Evacuate front air suspension struts using STAR DIAGNOSIS	Vehicles with AIRmatic (semi-active air suspension), code 489
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
	Notes on AIRmatic		AH32.22-P-1000-02T
2	Remove air filter housing with air ducts	Model 219.354/356/357/372	AR09.10-P-1150TS
		Model 219.375	AR09.10-P-1150TY
		Model 219.377	AR09.10-P-1150TMG
		Model 219.376	AR09.10-P-1150TZ
		Model 219.322	AR09.10-P-1150TQ
3	Lower front axle		AR33.10-P-0101TX
4	Remove clamp (2) on front axle carrier (1)	Engine 113, 156, 272, 273	*BA46.30-P-1004-01G
5	Remove bracket (3) on retaining bracket (21b)
6	Remove bolts (21e) and remove retaining bracket (21b)	The retaining brackets (21b) must be replaced.
6	Remove bolts (21e) and remove retaining bracket (21b)		*BA32.20-P-1004-02M
7	Undo nuts (23b) and remove link rods (23) from torsion bar (10).	To be able to counterhold the bolts (23d), push the stabilizer bar (10) to the rear. Check rubber mounts of link rods (23) for signs of damage; fit new link rods (23) if necessary.
7			*BA32.20-P-1001-02M
8	Detach front section of fender liner in right front fender; to do so, remove expansion rivet (4)
9	Remove stabilizer bar (10) towards the front
10	Install in the reverse order
11	Inflate air suspension strut using STAR DIAGNOSIS	Vehicles with AIRmatic (semi-active air suspension), code 489 The wheels must not make any contact with the ground when inflating, as when inflated in the jounce condition the air spring bellows in the spring element will be destroyed.
12	Perform a wheel alignment check		AR40.20-P-0200TX

FRONT AXLE STABILIZER BAR

Number	Designation			Model 219.3
BA32.20-P-1001-02M	Self-locking nut of connecting rod to torsion bar	M14X1.5	Nm	130
BA32.20-P-1004-02M	Bolt, retaining bracket to longitudinal member		Nm	50

POWER STEERING PUMP

Number	Designation		Model 219 with engine 113	Model 219 with engine 156	Model 219 with engine 272, 273
BA46.30-P-1004-01G	Bolt, hydraulic line to front axle carrier	Nm	5	5	5
